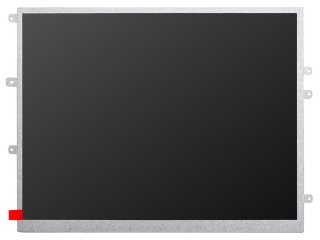

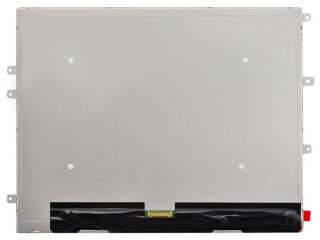

| Part Number | TM097TDHG04-62 |
| Mark | TIANMA |
| Gréisst | 9.7 |
| Applikatioun | Pad & Tablet Industr |
| Opléisung | 1024×768 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | LVDS |
| Mark | TIANMA |
| diagonal Gréisst | 9.7 inch |
| Pixel Format | 1024(RGB)×768 [XGA] 132PPI |
| aktiv Beräich | 196.608(H)×147.456(V) mm |
| bezel Beräich | 200.91(H)×152.27(V) mm |
| luminance | 350 cd/m² (Typ.) |
| Vue Richtung | 12 o'clock |
| Vue Wénkel | 70/70/60/70 (Typ.)(CR≥10) |
| Ënnerstëtzung Faarf | 262K 50% NTSC |
| Gewiicht | 200g (Typ.) |
| Frame Taux | 60Hz |
| Interface Typ | LVDS (1 ch, 6-bit) , 30 pins Connector |
| Stroumversuergung | 3.3V (Typ.) |
| Ëmwelt | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| Modell | TM097TDHG04-62 |
| Typ | a-Si TFT-LCD , LCM |
| Configuratioun | RGB Vertical Stripe |
| kontur dim. | 210.2(H)×166.3(V) ×6.5(D) mm |
| Behandlung | Clear |
| Kontrast Verhältnis | 500:1 (Typ.) (TM) |
| Äntwert Zäit | 20/25 (Typ./Max.)(Tr+Td) |
| Betribssystemer Modus | TN, Normally White, Transmissive |
| Liichtquell | WLED [6S6P] , 30K hours , W/O Driver |
| entworf fir | Pad & Tablet Industrial |
| Touch Panel | Without |
