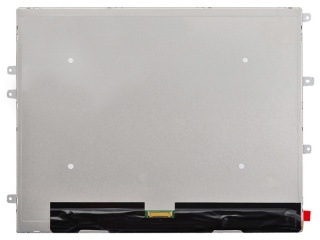

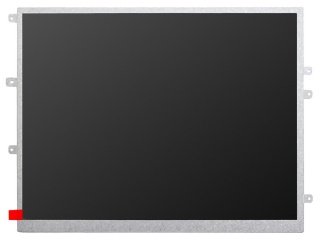

| Part Number | TM097TDHG04-02 |
| Mark | TIANMA |
| Gréisst | 9.7 |
| Applikatioun | Pad & Tablet Industr |
| Opléisung | 1024×768 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | 6S6P |
| Interface | LVDS |
| Panel Mark | TIANMA |
| Panel Gréisst | 9.7" |
| Resolutioun | 1024(RGB)×768, XGA, 132PPI |
| Affichage Beräich | 196.608(W)×147.456(H) mm |
| Kontur Gréisst | 210.2(W)×166.3(H) ×5.85(D) mm |
| Hellegkeet | 350 cd/m² (Typ.) |
| Vue Wénkel | 70/70/60/70 (Typ.)(CR≥10) |
| beschte Vue op | 12 o'clock |
| weisen Faarwen | 262K 50% NTSC |
| Frequenz | 60Hz |
| Panel Gewiicht | 200g (Typ.) |
| Signal Interface | LVDS (1 ch, 6-bit) , 30 pins Connector |
| Input Volt | 3.3V (Typ.) |
| Ëmwelt | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| Panel Modell | TM097TDHG04-02 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| bezel Ouverture | 200.91(W)×152.27(H) mm |
| Uewerfläch | Clear |
| Kontrast Verhältnis | 500:1 (Typ.) (TM) |
| Display Modus | TN, Normally White, Transmissive |
| Äntwert Zäit | 20/25 (Typ./Max.)(Tr+Td) |
| Lampe Typ | 6S6P WLED , 30K hours , Without Driver |
| Touchscreens | Without |
| Applikatioun | Pad & Tablet Industrial |
