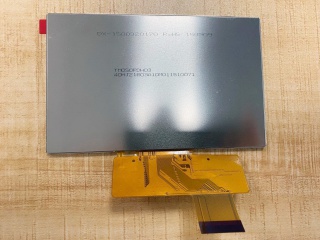

| Part Number | TM050RDH03-40 |
| Mark | TIANMA |
| Gréisst | 5.0 |
| Applikatioun | Industrial Portable |
| Opléisung | 800×480 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 600:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | |
| Mark | TIANMA |
| diagonal Gréisst | 5.0 inch |
| Pixel Format | 800(RGB)×480 [WVGA] 188PPI |
| aktiv Beräich | 108(H)×64.8(V) mm |
| bezel Beräich | 111.1(H)×67.9(V) mm |
| luminance | 250 cd/m² (Typ.) |
| Vue Richtung | 12 o'clock |
| Vue Wénkel | 70/70/50/70 (Typ.)(CR≥10) |
| Ënnerstëtzung Faarf | 16.7M 50% NTSC |
| Gewiicht | 57.0g (Typ.) |
| Frame Taux | 60Hz |
| Modell | TM050RDH03-40 |
| Typ | a-Si TFT-LCD , LCM |
| Configuratioun | RGB Vertical Stripe |
| kontur dim. | 120.7(H)×75.8(V) ×3.1(D) mm |
| Behandlung | Antiglare, Hard coating (3H) |
| Kontrast Verhältnis | 600:1 (Typ.) (TM) |
| Äntwert Zäit | 20 (Typ.)(Tr+Td) |
| Betribssystemer Modus | TN, Normally White, Transmissive |
| Liichtquell | WLED [7S2P] , 20K hours , W/O Driver |
| entworf fir | Industrial Portable Navigation MID UMPC MP3 PMP |
| Touch Panel | Without |
| AT050TN43 V.1 | Innolux | 5.0 | 800×480 |
| BTL507212-W746L | BOE | 5.0 | 720×1280 |
| LM5Q321 | SHARP | 5.0 | 320×240 |
| LMS501KF03 | Samsung | 5.0 | 480×800 |
| LQ050A5BS01 | SHARP | 5.0 | 320×234 |
| LTP500GV-F01 | Samsung | 5.0 | 480×640 |
| P50AN3 | E Ink | 5.0 | 320×234 |
| PA050DS2T1 | E Ink | 5.0 | 320×234 |
| TM050RBH01 | Tianma | 5.0 | 800×480 |
| TM050RDH03 | Tianma | 5.0 | 800×480 |
