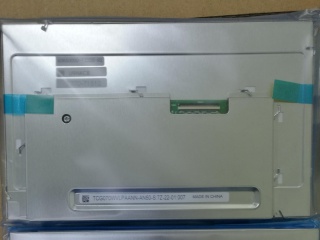

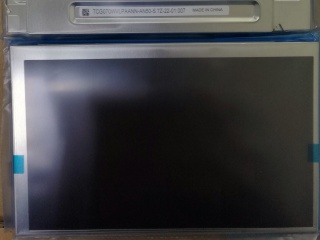

| Part Number | TCG070WVLPAANN-AN50-S |
| Mark | Kyocera |
| Gréisst | 7.0 |
| Applikatioun | Industrial |
| Opléisung | 800×480 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 262K |
| Géigeliicht | 2 |
| Interface | Parallel |
| Panel Mark | Kyocera |
| Panel Gréisst | 7.0" |
| Resolutioun | 800(RGB)×480, WVGA, 133PPI |
| Affichage Beräich | 152.4(W)×91.44(H) mm |
| Kontur Gréisst | 165(W)×104.4(H) ×8.5(D) mm |
| Hellegkeet | 900 cd/m² (Typ.) |
| Vue Wénkel | 80/80/60/80 (Typ.)(CR≥10) |
| beschte Vue op | 12 o'clock |
| weisen Faarwen | 262K 49% NTSC |
| Frequenz | - |
| Panel Gewiicht | 195g (Typ.) |
| Signal Interface | Parallel RGB (1 ch, 6-bit) , 40 pins Connector |
| Input Volt | 3.3V (Typ.) |
| Ëmwelt | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| Panel Modell | TCG070WVLPAANN-AN50-S |
| Panel Typ | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| bezel Ouverture | 154.4(W)×93.4(H) mm |
| Uewerfläch | Antiglare |
| Kontrast Verhältnis | 1000:1 (Typ.) (TM) |
| Display Modus | TN, Normally White, Transmissive |
| Äntwert Zäit | 5/25 (Typ.)(Tr/Td) |
| Lampe Typ | 2 strings WLED , 50K hours , Without Driver |
| Touchscreens | Without |
| Applikatioun | Industrial |
