AUO T400HW01 V1 Dateblat, Spezifizéierung, Aktien, Applikatioun www.looklcd-lu.com
LookLCD LookLCD

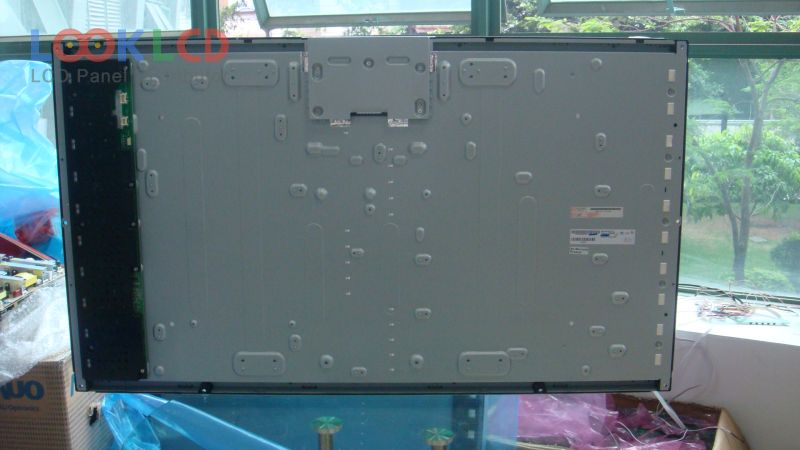

T400HW01 V1

T400HW01 V1
T400HW01 V1 thumb
Mark
AUO
Gréisst
40
Applikatioun
LCTV
Opléisung
1920×1080
Zesummesetzung
LCM
Hellegkeet
500
CR
1700:1
Faarwen
16.7M
Backlight
CCFL
Interface
LVDS
In Stock
16
Spezifikatioune

Part Number T400HW01 V1
MarkAUO
Gréisst40
ApplikatiounLCTV
Opléisung1920×1080
ZesummesetzungLCM
Hellegkeet500
CR1700:1
Faarwen16.7M
GéigeliichtCCFL
InterfaceLVDS
Panel MarkAUO
Panel ModellT400HW01 V1
Panel Typ a-Si TFT-LCD , LCM
Panel Gréisst40 inch
Resolutioun1920(RGB)×1080 , FHD
Display ModusNormally Black, Transmissive
aktiv Beräich885.6×498.15 mm
skizzéieren952×551 mm
UewerflächAntiglare (Haze 40%), Hard coating (3H)
Hellegkeet500 cd/m² (Typ.)
Kontrast Verhältnis1700:1 (Typ.)
weisen Faarwen16.7M (8-bit), CIE193192%
Äntwert Zäit15/5 (Typ.)(Tr/Td); 6.5 (Typ.)(G to G)
Vue Wénkel89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)
Frequenz60Hz
Lampe Typ20 pcsCCFLEmbedded (Balance board)
Signal InterfaceLVDS (2 ch, 8-bit), 51 pins
Input Volt12.0V (Typ.)
ApplikatiounLCTV
Famill Modell
LTA400HA07 Samsung 40 1920×1080
LTA400HM21 Samsung 40 1920×1080
T400HVN01.0 CELL AUO 40 1920×1080
T400HW01 V1 AUO 40 1920×1080
T400HW01 V4 AUO 40 1920×1080
T400HW01 V5 AUO 40 1920×1080
T400HW03 V0 AUO 40 1920×1080
T400HW03 V6 AUO 40 1920×1080
T400HW04 V1 AUO 40 1920×1080
T400HW04 V2 AUO 40 1920×1080
