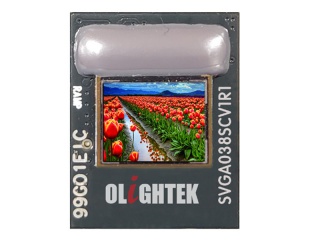

| Part Number | SVGA038SCV1R1 |
| Mark | OLiGHTEK |
| Gréisst | 0.38 |
| Applikatioun | HMD VR AR |
| Opléisung | 800×600 |
| Zesummesetzung | Si-OLED, OLED |
| Hellegkeet | |
| CR | 10000:1 |
| Faarwen | 16.7M |
| Géigeliicht | self |
| Interface | Parallel |
| Mark | OLiGHTEK |
| Modell | SVGA038SCV1R1 |
| diagonal Gréisst | 0.38 inch |
| Typ | Si-OLED, OLED |
| Pixel Format | 800(RGB)×600 [SVGA] 2631PPI |
| Configuratioun | RGB Vertical Stripe |
| aktiv Beräich | 7.718(H)×5.798(V) mm |
| kontur dim. | 15(H)×19(V) mm |
| bezel Beräich | 7.718(H)×5.798(V) mm |
| Behandlung | - |
| luminance | 70 cd/m² (Typ.) |
| Kontrast Verhältnis | 10000:1 (Typ.) (TM) |
| Vue Richtung | Symmetry |
| Äntwert Zäit | - |
| Vue Wénkel | - |
| Betribssystemer Modus | - |
| Ënnerstëtzung Faarf | 16.7M |
| Liichtquell | self |
| Gewiicht | 2.00g (Max.) |
| entworf fir | HMD VR AR |
| Frame Taux | 85Hz |
| Touch Panel | Without |
| Interface Typ | Parallel RGB (1 ch, 8-bit), CCIR601/656 , 40 pins Connector |
| Stroumversuergung | 1.8/5.0V (Typ.) |
| Ëmwelt | Operating Temperature: -40 ~ 65 °C ; Storage Temperature: -55 ~ 90 °C |
