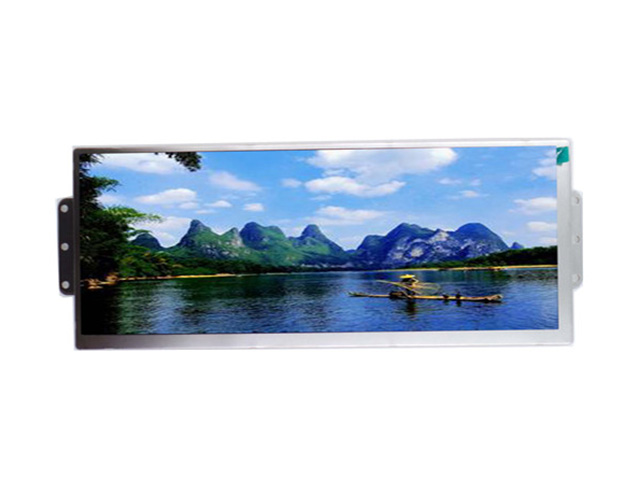

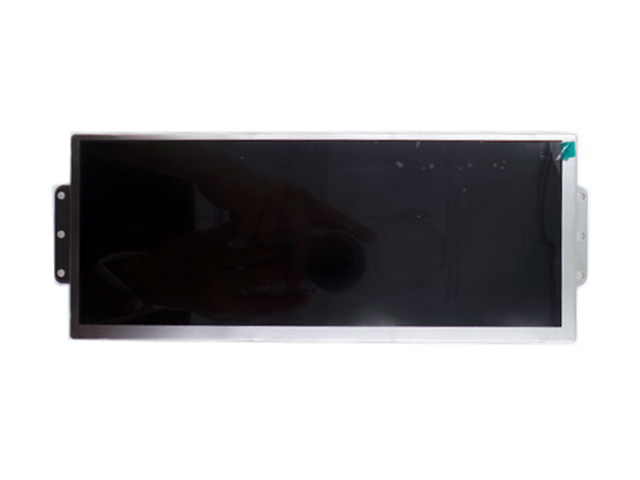

| Part Number | S091WX02 |
| Mark | CDTECH |
| Gréisst | 9.1 |
| Applikatioun | Industrial Stretched |
| Opléisung | 1280×480 |
| Zesummesetzung | LCM , a-Si TFT-LCD |
| Hellegkeet | |
| CR | 800:1 |
| Faarwen | 16.7M |
| Géigeliicht | 3S12P WLED , 30K hours , No Driver |
| Interface | LVDS |
| Fabrikant beschwéiert | CDTECH |
| Modell Numm | S091WX02 |
| Écran Gréisst | 9.1 inch (3/5 cut of 10.1") |
| Écran Typ | LCM , a-Si TFT-LCD |
| Pixel Zuel | 1280(RGB)×480 (DVGA) 149PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 216.96 × 81.36 (H×V) |
| Kontur (mm) | 231.6 × 94.7 (H×V×D) |
| Bezel Beräich (mm) | 220.46 × 84.86 (H×V) |
| Behandlung | - |
| luminance | 500 cd/m² (Typ.) |
| Kontrast Verhältnis | 800 : 1 (Typ.) (TM) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Äntwert | 10/15 (Typ.)(Tr/Td) ms |
| gutt Vue op | Symmetry |
| Aarbecht Modus | IPS, Normally Black, Transmissive |
| Faarfdéift | 16.7M |
| mass | TBD |
| benotzt fir | Industrial Stretched Bar LCD |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |
| Signal Typ | LVDS (1 ch, 8-bit) , 40 pins Connector |
| Spannungsversuergung | 2.5/8.2/22/-7V (Typ.)(VDD/AVDD/VGH/VGL) |
| max. Bewäertungen | Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
