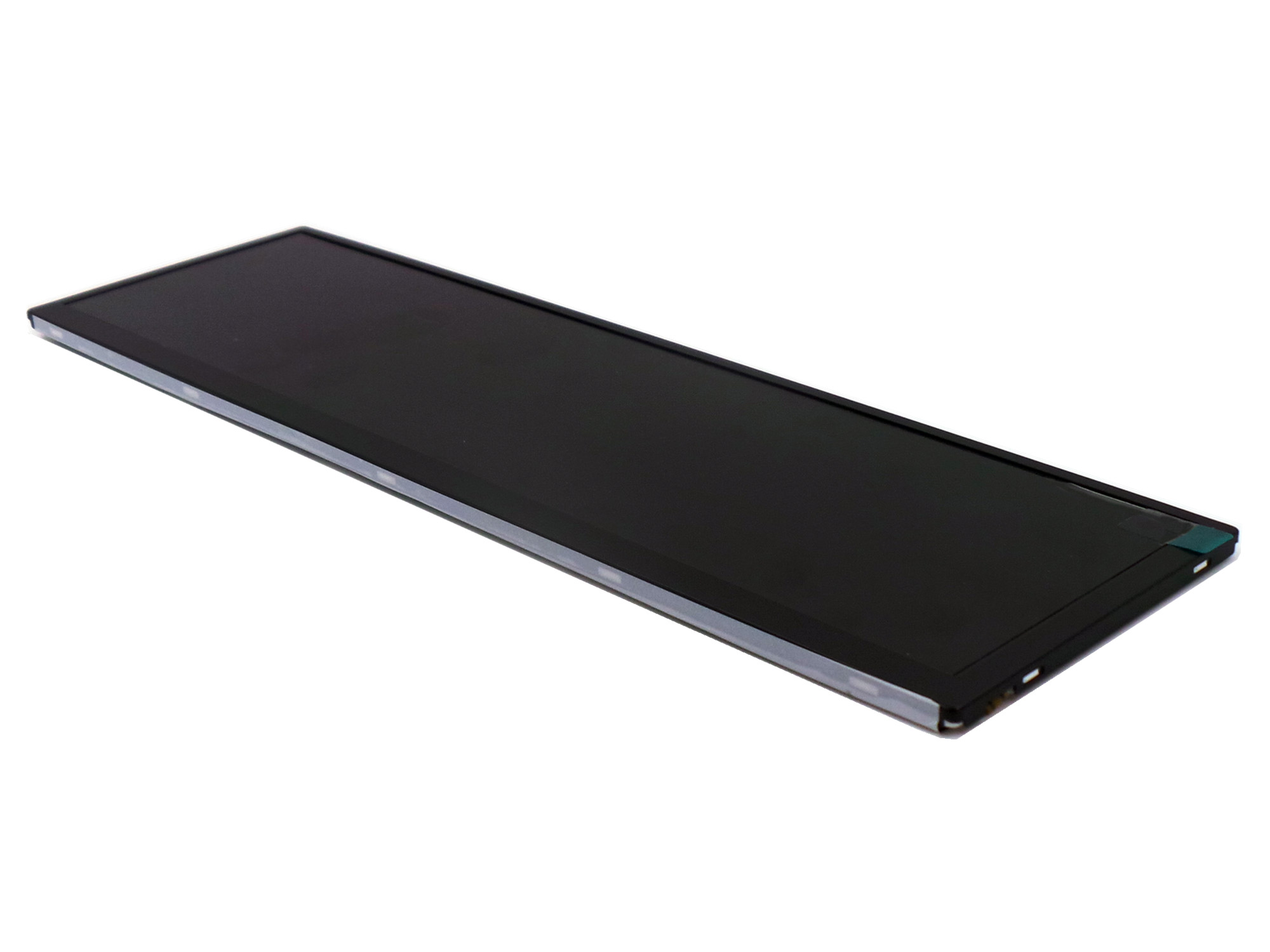

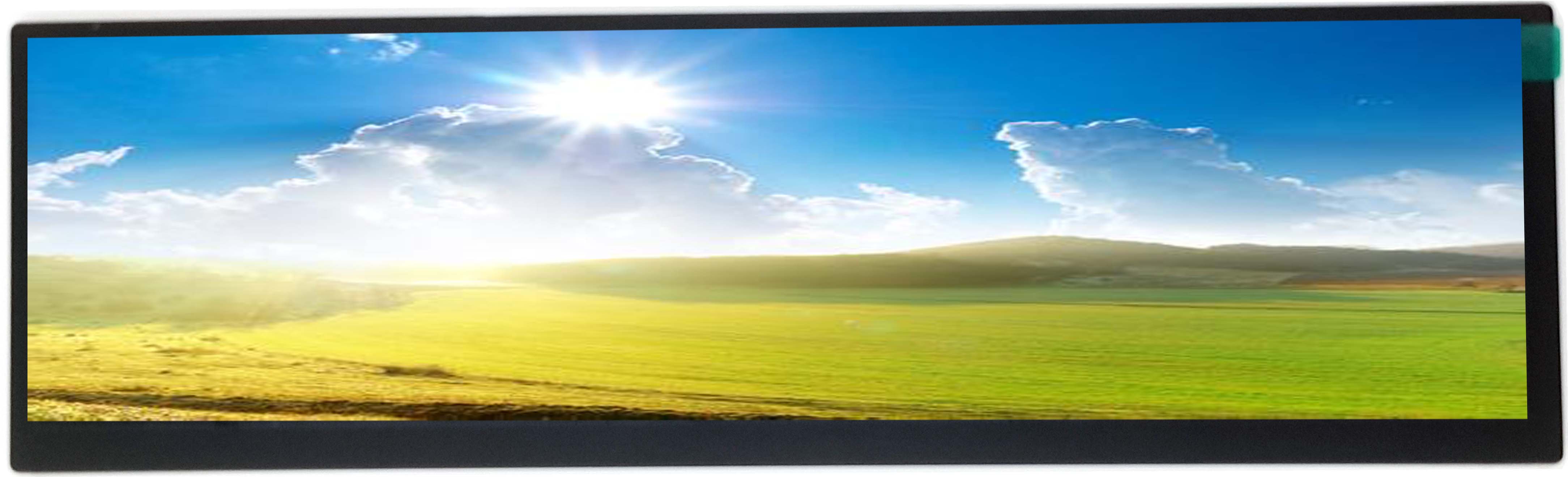

| Part Number | S088WU02 |
| Mark | CDTECH |
| Gréisst | 8.8 |
| Applikatioun | Industrial Stretched |
| Opléisung | 1920×480 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 800:1 |
| Faarwen | 16.7M |
| Géigeliicht | 4S9P |
| Interface | LVDS |
| Panel Mark | CDTECH |
| Panel Gréisst | 8.8" (2/5 cut of 10.1") |
| Resolutioun | 1920(RGB)×480, 224PPI |
| Affichage Beräich | 216.86(W)×54.22(H) mm |
| Kontur Gréisst | 229.66(W)×67.5(H) ×4.3(D) mm |
| Hellegkeet | 600 cd/m² (Typ.) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| beschte Vue op | Symmetry |
| weisen Faarwen | 16.7M |
| Frequenz | 60Hz |
| Panel Gewiicht | - |
| Signal Interface | LVDS (1 ch, 8-bit) , 40 pins Connector |
| Input Volt | 3.3/9.89/21.88/-6.8V (Typ.)(VCC/AVDD/VGH/VGL) |
| Ëmwelt | Operating Temp.: -10 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Panel Modell | S088WU02 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| bezel Ouverture | 221.2(W)×57.84(H) mm |
| Uewerfläch | Hard coating |
| Kontrast Verhältnis | 800:1 (Typ.) (TM) |
| Display Modus | IPS, Normally Black, Transmissive |
| Äntwert Zäit | 25 (Typ.)(Tr+Td) |
| Lampe Typ | 4S9P WLED , 30K hours , Without Driver |
| Touchscreens | Without |
| Applikatioun | Industrial Stretched Bar LCD |
