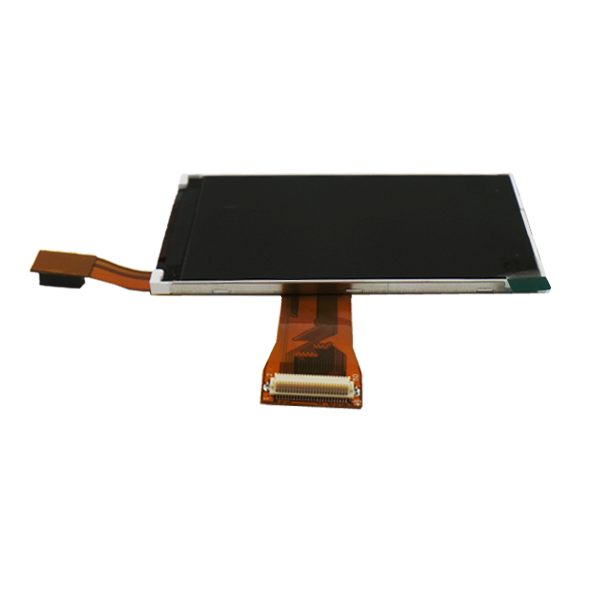

| Part Number | S032Q10 |
| Mark | CDTECH |
| Gréisst | 3.2 |
| Applikatioun | Handheld & PDA |
| Opléisung | 240×320 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 350:1 |
| Faarwen | 262K |
| Géigeliicht | 1S5P |
| Interface | CPU |
| Panel Mark | CDTECH |
| Panel Modell | S032Q10 |
| Panel Gréisst | 3.2" |
| Panel Typ | a-Si TFT-LCD, LCM |
| Resolutioun | 240(RGB)×320, QVGA, 127PPI |
| Pixel Format | RGB Vertical Stripe |
| Affichage Beräich | 47.88(W)×63.84(H) mm |
| bezel Ouverture | - |
| Kontur Gréisst | 55.04(W)×77.7(H) ×2.5(D) mm |
| Uewerfläch | - |
| Hellegkeet | 270 cd/m² (Typ.) |
| Kontrast Verhältnis | 350:1 (Typ.) (TM) |
| Vue Wénkel | 55/65/65/65 (Typ.)(CR≥10) |
| Display Modus | TN, Normally White, Transmissive |
| beschte Vue op | 9 o'clock |
| Äntwert Zäit | 20 (Typ.)(Tr+Td) |
| weisen Faarwen | 262K |
| Lampe Typ | 1S5P WLED , 25K hours , Without Driver |
| Frequenz | - |
| Touchscreens | Without |
| Panel Gewiicht | TBD |
| Applikatioun | Handheld & PDA |
| Signal Interface | CPU , 37 pins FPC |
| Input Volt | 3.3/3.3V (Max.)(VCC/IOVCC) |
| Ëmwelt | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
