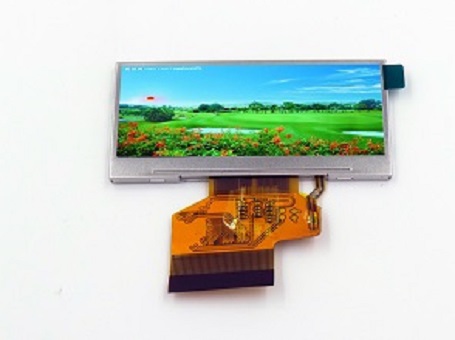

| Part Number | S029Q03 |
| Mark | CDTECH |
| Gréisst | 2.9 |
| Applikatioun | Stretched Bar LCD |
| Opléisung | 320×120 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 400:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | 8/9/16/18-bit |
| Mark | CDTECH |
| Modell | S029Q03 |
| diagonal Gréisst | 2.9 inch (1/2 cut of 3.5") |
| Typ | a-Si TFT-LCD, LCM |
| Pixel Format | 320(RGB)×120 115PPI |
| Configuratioun | RGB Vertical Stripe |
| aktiv Beräich | 70.08(H)×26.284(V) mm |
| kontur dim. | 76.9(H)×37.72(V) ×3.46(D) mm |
| bezel Beräich | 72.68(H)×28.88(V) mm |
| Behandlung | - |
| luminance | 300 cd/m² (Typ.) |
| Kontrast Verhältnis | 400:1 (Typ.) (TM) |
| Vue Richtung | 12 o'clock |
| Äntwert Zäit | 8/17 (Typ.)(Tr/Td) |
| Vue Wénkel | 65/65/55/65 (Typ.)(CR≥10) |
| Betribssystemer Modus | TN, Normally White, Transmissive |
| Ënnerstëtzung Faarf | 262K 61% NTSC |
| Liichtquell | WLED [6S1P] , 30K hours , W/O Driver |
| Gewiicht | TBD |
| entworf fir | Stretched Bar LCD |
| Frame Taux | - |
| Touch Panel | Without |
| Interface Typ | 8/9/16/18-bit 6800/8080 parallel, 6/9/16/18-bit RGB, SPI , 54 pins FPC |
| Stroumversuergung | 3.3/3.3V (Typ.)(VCI/VDDIO) |
| Ëmwelt | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
