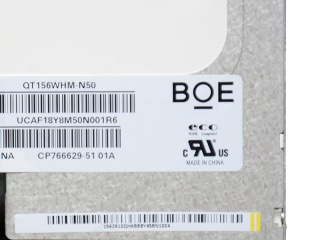

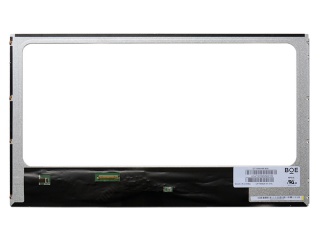

| Part Number | QT156WHM-N50 |
| Mark | BOE |
| Gréisst | 15.6 |
| Applikatioun | Laptop Printer Home |
| Opléisung | 1366×768 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | BOE |
| Panel Gréisst | 15.6" |
| Resolutioun | 1366(RGB)×768, WXGA, 100PPI |
| Affichage Beräich | 344.232(W)×193.536(H) mm |
| Hellegkeet | 200 cd/m² (Typ.) |
| Vue Wénkel | 45/45/20/40 (Typ.)(CR≥10) |
| beschte Vue op | 6 o'clock |
| weisen Faarwen | 262K 45% NTSC |
| Frequenz | 60Hz |
| Form Stil | Wedge (PCBA Bent, T≥5.2mm) |
| Signal Interface | LVDS (1 ch, 6-bit) , 40 pins Connector |
| Input Volt | 3.3V (Typ.) |
| Ëmwelt | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Panel Modell | QT156WHM-N50 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| bezel Ouverture | - |
| Kontrast Verhältnis | 500:1 (Typ.) (TM) |
| Display Modus | TN, Normally White, Transmissive |
| Äntwert Zäit | 12 (Typ.)(Tr+Td) |
| Lampe Typ | WLED , 15K hours , With LED Driver |
| Touchscreens | Without |
| Applikatioun | Laptop Printer Home Appliance |
