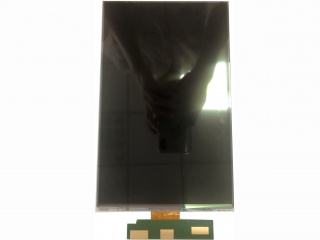

| Part Number | P101GWWC R5 |
| Mark | IVO |
| Gréisst | 10.1 |
| Applikatioun | Pad & Tablet |
| Opléisung | 800×1280 |
| Zesummesetzung | a-Si TFT-LCD, CELL |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | No |
| Interface | MIPI |
| Mark | IVO |
| Modell | P101GWWC R5 |
| diagonal Gréisst | 10.1 inch |
| Typ | a-Si TFT-LCD, CELL |
| Pixel Format | 800(RGB)×1280 [WXGA] 150PPI |
| Configuratioun | RGB Vertical Stripe |
| aktiv Beräich | 135.36(H)×216.576(V) mm |
| kontur dim. | 139.36(H)×225.8(V) ×1.06(D) mm |
| bezel Beräich | - |
| Behandlung | Antiglare |
| luminance | 0 cd/m² |
| Kontrast Verhältnis | 1000:1 (Typ.) (TM) |
| Vue Richtung | Symmetry |
| Äntwert Zäit | 30 (Typ.)(Tr+Td) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Betribssystemer Modus | IPS, Normally Black, Transmissive |
| Plackedicke | 0.40+0.40 mm |
| Iwwerdroung | 6.2% (Typ.) |
| Ënnerstëtzung Faarf | 16.7M 60% NTSC |
| Liichtquell | No B/L |
| Gewiicht | 85.0g (Max.) |
| entworf fir | Pad & Tablet |
| Frame Taux | 60Hz |
| Touch Panel | Without |
| d-ic detail | COG Built-in 1 source chips |
| Interface Typ | MIPI (4 data lanes) , 39 pins Connector |
| Stroumversuergung | 3.3V (Typ.) |
| Ëmwelt | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
