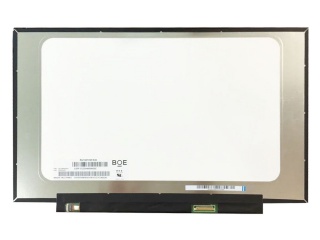

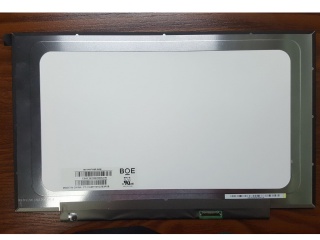

| Part Number | NV140FHM-N4B |
| Mark | BOE |
| Gréisst | 14.0 |
| Applikatioun | Laptop |
| Opléisung | 1920×1080 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 800:1 |
| Faarwen | 262K |
| Géigeliicht | 8S4P |
| Interface | eDP |
| Panel Mark | BOE |
| Panel Gréisst | 14.0" |
| Resolutioun | 1920(RGB)×1080, FHD, 157PPI |
| Affichage Beräich | 309.31(W)×173.99(H) mm |
| Kontur Gréisst | 315.812(W)×197.48(H) ×3(D) mm |
| Hellegkeet | 220 cd/m² (Typ.) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| beschte Vue op | Symmetry |
| weisen Faarwen | 262K 46% NTSC |
| Frequenz | 60Hz |
| Form Stil | Slim (PCBA Flat, T≤3.2mm) |
| Signal Interface | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| Input Volt | 3.3V (Typ.) |
| Ëmwelt | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Panel Modell | NV140FHM-N4B (BOE072C) |
| Panel Typ | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| bezel Ouverture | - |
| Uewerfläch | Antiglare |
| Kontrast Verhältnis | 800:1 (Typ.) (TM) |
| Display Modus | ADS, Normally Black, Transmissive |
| Äntwert Zäit | 30 (Typ.)(Tr+Td) |
| Lampe Typ | 8S4P WLED , 15K hours , With LED Driver |
| Touchscreens | Without |
| Applikatioun | Laptop |
| B140XW01 V8 | AUO | 14.0 | 1366×768 |
| BT140GW02 V.0 | Innolux | 14.0 | 1366×768 |
| HB140WX1-501 | BOE | 14.0 | 1366×768 |
| HT140WXB-501 | BOE | 14.0 | 1366×768 |
| LP140WH2-TLM1 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TPS1 | LG Display | 14.0 | 1366×768 |
| LTN140HL02-201 | Samsung | 14.0 | 1920×1080 |
| N140BGE-L33 | Innolux | 14.0 | 1366×768 |
| N140FGE-LA2 | Innolux | 14.0 | 1600×900 |
| NV140FHM-N41 | BOE | 14.0 | 1920×1080 |
