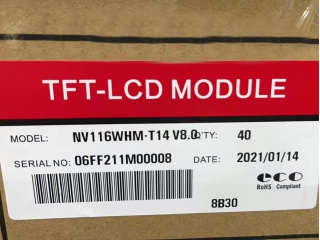

| Part Number | NV116WHM-T14 |
| Mark | BOE |
| Gréisst | 11.6 |
| Applikatioun | Laptop |
| Opléisung | 1366×768 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 1200:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | eDP |
| Mark | BOE |
| Modell | NV116WHM-T14 |
| diagonal Gréisst | 11.6 inch |
| Typ | a-Si TFT-LCD, LCM |
| Pixel Format | 1366(RGB)×768 [WXGA] 135PPI |
| Configuratioun | RGB Vertical Stripe |
| aktiv Beräich | 256.125(H)×144(V) mm |
| kontur dim. | 268(H)×168(V) ×3.2(D) mm |
| luminance | - |
| Kontrast Verhältnis | 1200:1 (Typ.) (TM) |
| Vue Richtung | Symmetry |
| Äntwert Zäit | 30 (Typ.)(Tr+Td) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Betribssystemer Modus | ADS, Normally Black, Transmissive |
| Ënnerstëtzung Faarf | 262K |
| Liichtquell | WLED , 15K hours , With LED Driver |
| Form Stil | Slim (PCBA Flat, T≤3.2mm) |
| entworf fir | Laptop |
| Frame Taux | 60Hz |
| Touch Panel | On-Cell Touch |
| Interface Typ | eDP (1 Lane) Connector |
| Stroumversuergung | 3.3V (Typ.) |
| Ëmwelt | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| B116XAN01.0 | AUO | 11.6 | 1366×768 |
| B116XAN03.0 HW3A | AUO | 11.6 | 1366×768 |
| B116XTN02.3 HW0A | AUO | 11.6 | 1366×768 |
| B116XTT01.1 | AUO | 11.6 | 1366×768 |
| B116XW05 V0 | AUO | 11.6 | 1366×768 |
| HN116WX1-100 | BOE | 11.6 | 1366×768 |
| LP116WH4-TJA3 | LG Display | 11.6 | 1366×768 |
| M116NWR4 R0 | IVO | 11.6 | 1366×768 |
| N116B6-L04 | Innolux | 11.6 | 1366×768 |
| N116HSE-EBC | Innolux | 11.6 | 1920×1080 |
