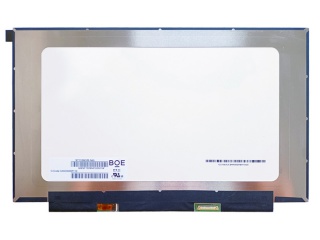

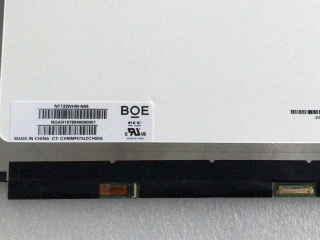

| Part Number | NT133WHM-N45 |
| Mark | BOE |
| Gréisst | 13.3 |
| Applikatioun | Laptop |
| Opléisung | 1366×768 |
| Zesummesetzung | LCM, a-Si TFT-LCD |
| Hellegkeet | |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | 8S4P WLED , 15K hours , With LED Driver |
| Interface | eDP |
| Fabrikant beschwéiert | BOE |
| Modell Numm | NT133WHM-N45 (BOE07AD) 6 Compatible |
| Écran Gréisst | 13.3 inch |
| Écran Typ | LCM, a-Si TFT-LCD |
| Pixel Zuel | 1366(RGB)×768 (WXGA) 118PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 293.42 × 164.97 (H×V) |
| Kontur (mm) | 300.26 × 187.27 × 3 (H×V×D) |
| Bezel Beräich (mm) | - |
| Behandlung | Antiglare, Hard coating (3H) |
| luminance | 220 cd/m² (Typ.) |
| Kontrast Verhältnis | 500 : 1 (Typ.) (TM) |
| Vue Wénkel | 45/45/20/40 (Typ.)(CR≥10) |
| Äntwert | 12 (Typ.)(Tr+Td) ms |
| gutt Vue op | 6 o'clock |
| Aarbecht Modus | TN, Normally White, Transmissive |
| Faarfdéift | 262K 45% NTSC |
| kontur Form | Slim (PCBA Flat, T≤3.2mm) |
| benotzt fir | Laptop |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |
| Signal Typ | eDP (1 Lane) , eDP1.2 , HBR1 (2.7G/lane) , Connector 30 pins |
| Spannungsversuergung | 3.3V (Typ.) |
| max. Bewäertungen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| B133XTN01.2 | AUO | 13.3 | 1366×768 |
| B133XW07 V2 | AUO | 13.3 | 1366×768 |
| LP133WH1-TLA2 | LG Display | 13.3 | 1366×768 |
| LP133WX3-TLA1 | LG Display | 13.3 | 1280×800 |
| LTN133AT03-001 | Samsung | 13.3 | 1280×800 |
| LTN133AT05-S02 | Samsung | 13.3 | 1280×800 |
| LTN133AT07-G01 | Samsung | 13.3 | 1280×800 |
| LTN133AT23-X01 | Samsung | 13.3 | 1366×768 |
| N133BGE-EAB | Innolux | 13.3 | 1366×768 |
| N133I5-L01 | Innolux | 13.3 | 1280×800 |
