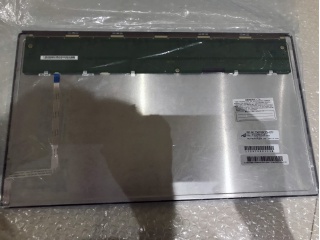

| Part Number | NL13676BC25-07F |
| Mark | NLT |
| Gréisst | 15.6 |
| Applikatioun | Industrial Outdoor H |
| Opléisung | 1366×768 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 900:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | 6 |
| Interface | LVDS |
| Panel Mark | NLT |
| Panel Gréisst | 15.6" |
| Resolutioun | 1366(RGB)×768, WXGA, 100PPI |
| Affichage Beräich | 344.232(W)×193.536(H) mm |
| Kontur Gréisst | 363.8(W)×215.9(H) ×13.15(D) mm |
| Hellegkeet | 1250 cd/m² (Typ.) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10) |
| beschte Vue op | 6 o'clock |
| weisen Faarwen | 262K/16.7M 60% NTSC |
| Frequenz | 60Hz |
| Panel Gewiicht | 1.07/1.17Kgs (Typ./Max.) |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Input Volt | 3.3V (Typ.) |
| Ëmwelt | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C |
| Panel Modell | NL13676BC25-07F |
| Panel Typ | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| bezel Ouverture | 347.55(W)×196.85(H) mm |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Kontrast Verhältnis | 900:1 (Typ.) (TM) |
| Display Modus | TN, Normally White, Transmissive |
| Äntwert Zäit | 3/15 (Typ.)(Tr/Td) |
| Lampe Typ | 6 strings WLED , 7K hours , Without Driver |
| Touchscreens | Without |
| Applikatioun | Industrial Outdoor High Brightness |
