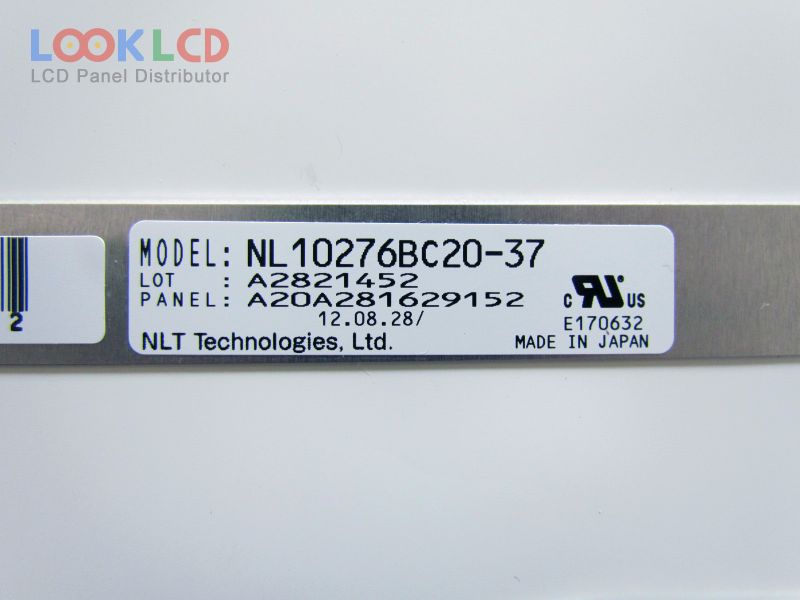

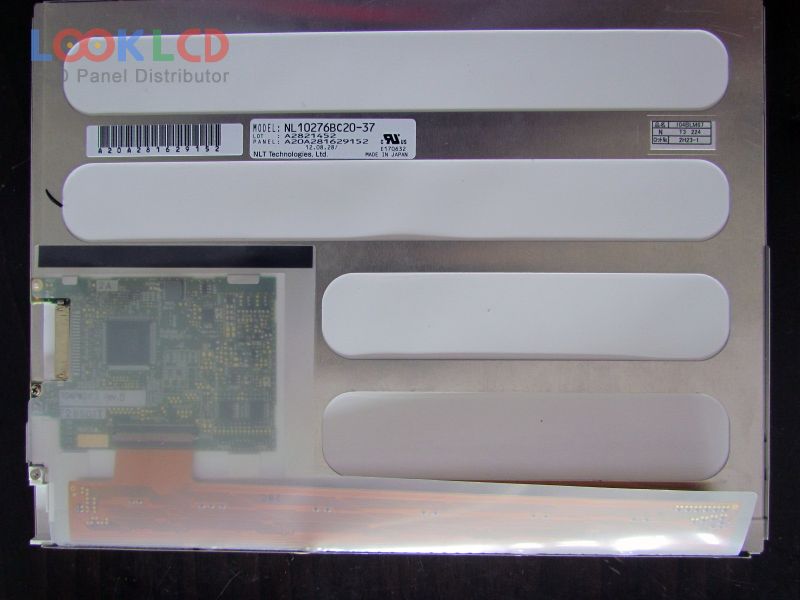

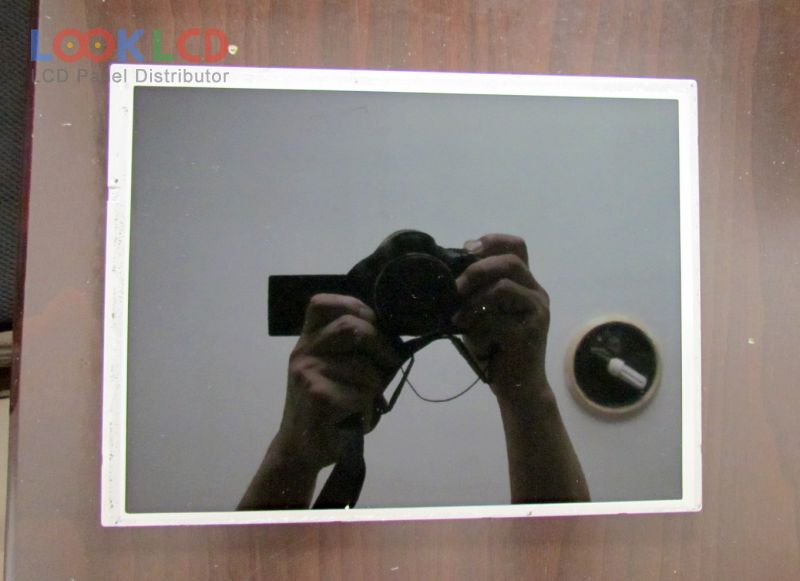

| Part Number | NL10276BC20-37 |
| Mark | NLT |
| Gréisst | 10.4 |
| Applikatioun | IA |
| Opléisung | 1024×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 150 |
| CR | 400:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | NLT |
| Panel Modell | NL10276BC20-37 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 10.4 inch |
| Resolutioun | 1024(RGB)×768 , XGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 210.4×157.8 mm |
| skizzéieren | 231.2×174.6×5.8 mm |
| Uewerfläch | Clear |
| Hellegkeet | 150 cd/m² (Typ.) |
| Kontrast Verhältnis | 400:1 (Typ.) |
| weisen Faarwen | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Äntwert Zäit | 3/15 (Typ.)(Tr/Td) |
| Vue Wénkel | 45/45/40/20 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDWithout Driver |
| Signal Interface | LVDS (1 ch, 6/8-bit) |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | IA |
