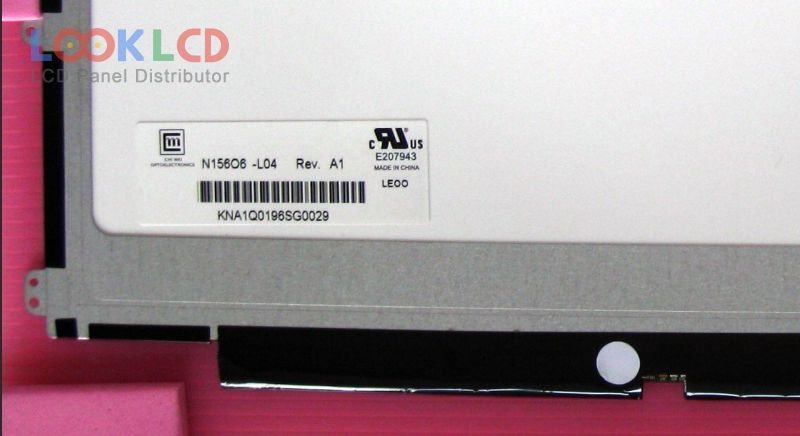

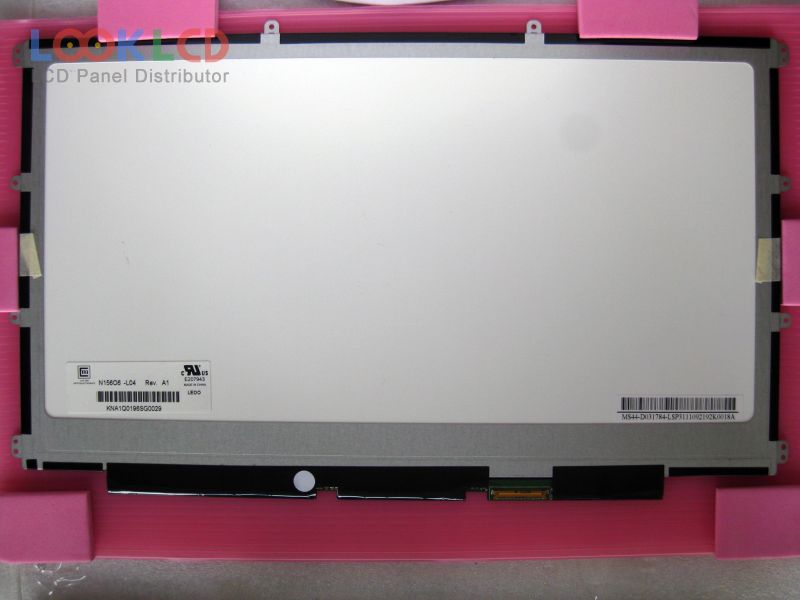

| Part Number | N156O6-L04 |
| Mark | Innolux |
| Gréisst | 15.6 |
| Applikatioun | NBPC |
| Opléisung | 1600×900 |
| Zesummesetzung | LCM |
| Hellegkeet | 220 |
| CR | 650:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | CMO |
| Panel Modell | N156O6-L04 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 15.6 inch |
| Resolutioun | 1600(RGB)×900 , HD+ |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 344.16×193.59 mm |
| skizzéieren | 371.5×224.5×3.65 mm |
| Form Stil | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Uewerfläch | Glare (Haze 0%), Hard coating (3H) |
| Hellegkeet | 220 cd/m² (Typ.) |
| Kontrast Verhältnis | 650:1 (Typ.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 3/7 (Typ.)(Tr/Td) |
| Vue Wénkel | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (2 ch, 6-bit), 40 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
