| Part Number | N156BGE-EA1 |
| Mark | Innolux |
| Gréisst | 15.6 |
| Applikatioun | NBPC |
| Opléisung | 1366×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 220 |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | eDP |
| Panel Mark | CHIMEI INNOLUX |
| Panel Modell | N156BGE-EA1 8 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 15.6 inch |
| Resolutioun | 1366(RGB)×768 , WXGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 344.232×193.536 mm |
| skizzéieren | 359.5×224.3×3.25 mm |
| Form Stil | Slim (PCBA Flat, Depth ≤3.2mm) |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 220 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193145% |
| Äntwert Zäit | 3/8 (Typ.)(Tr/Td) |
| Vue Wénkel | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |

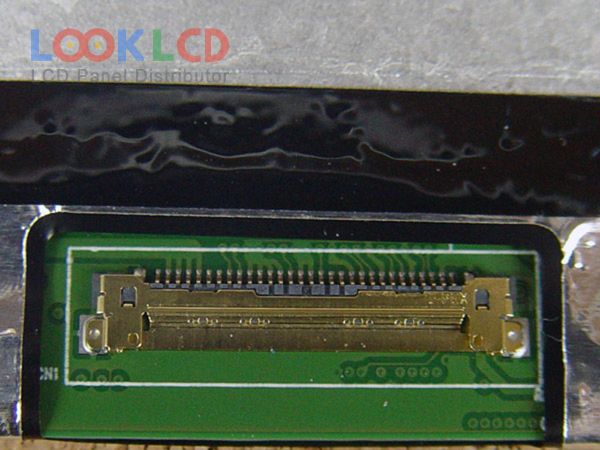

| Signal Interface | eDP (1 Lane), 30 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
