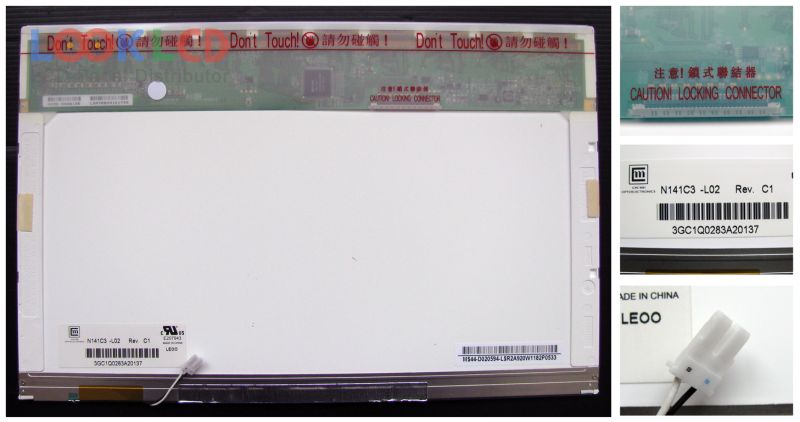

| Part Number | N141C3-L02 |
| Mark | Innolux |
| Gréisst | 14.1 |
| Applikatioun | NBPC |
| Opléisung | 1440×900 |
| Zesummesetzung | LCM |
| Hellegkeet | 220 |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | CMO |
| Panel Modell | N141C3-L02 3 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 14.1 inch |
| Resolutioun | 1440(RGB)×900 , WXGA+ |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 303.48×189.675 mm |
| skizzéieren | 319.5×205.5×5.5 mm |
| Form Stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Uewerfläch | Glare (Haze 0%), Hard coating (3H) |
| Hellegkeet | 220 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Typ.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 5/11 (Typ.)(Tr/Td) |
| Vue Wénkel | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 1 pcsCCFLWithout Driver |
| Signal Interface | LVDS (2 ch, 6-bit), 30 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
| HT14X13-102 | HYDIS | 14.1 | 1024×768 |
| LP141WX3-TLR1 | LG Display | 14.1 | 1280×800 |
| LP141WX5-TLA1 | LG Display | 14.1 | 1280×800 |
| LTN141AT16-B03 | Samsung | 14.1 | 1280×800 |
| N141C1-L01 | Innolux | 14.1 | 1440×900 |
| N141C1-L02 | Innolux | 14.1 | 1440×900 |
| N141C1-L05 | Innolux | 14.1 | 1440×900 |
| N141C3-L02 | Innolux | 14.1 | 1440×900 |
| N141C3-L04 | Innolux | 14.1 | 1440×900 |
| QD14FL02 Rev.01 | QDI | 14.1 | 1400×1050 |
| B156XW03 V1 | AUO | 15.6 | 1366×768 |
| CLAA154WA01 | CPT | 15.4 | 1280×800 |
| LP140WH1-TLC6 | LG Display | 14.0 | 1366×768 |
| LP141WX3-TLB1 | LG Display | 14.1 | 1280×800 |
| LP171WU1-TLA2 | LG Display | 17.1 | 1920×1200 |
| LT121S1-153 | Samsung | 12.1 | 800×600 |
| LTN141XF-L03 | Samsung | 14.1 | 1024×768 |
| LTN154X3-L0D | Samsung | 15.4 | 1280×800 |
| LTN170BT06-G01 | Samsung | 17.0 | 1440×900 |
| N140BGE-L33 | Innolux | 14.0 | 1366×768 |
