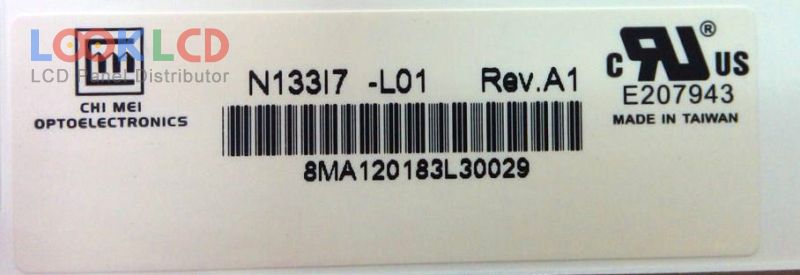

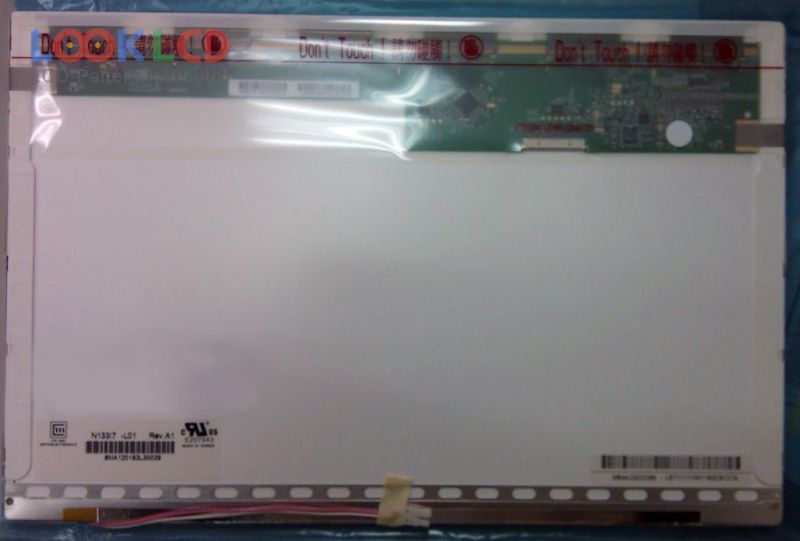

| Part Number | N133I7-L01 |
| Mark | Innolux |
| Gréisst | 13.3 |
| Applikatioun | NBPC |
| Opléisung | 1280×800 |
| Zesummesetzung | LCM |
| Hellegkeet | 250 |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | CMO |
| Panel Modell | N133I7-L01 1 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 13.3 inch |
| Resolutioun | 1280(RGB)×800 , WXGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 286.08×178.8 mm |
| skizzéieren | 299×195×5.5 mm |
| Form Stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Uewerfläch | Glare (Haze 0%), Hard coating (2H), Reflection 1.0% (Max.) |
| Hellegkeet | 250 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193148% |
| Äntwert Zäit | 3/7 (Typ.)(Tr/Td) |
| Vue Wénkel | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 1 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 6-bit), 20 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
