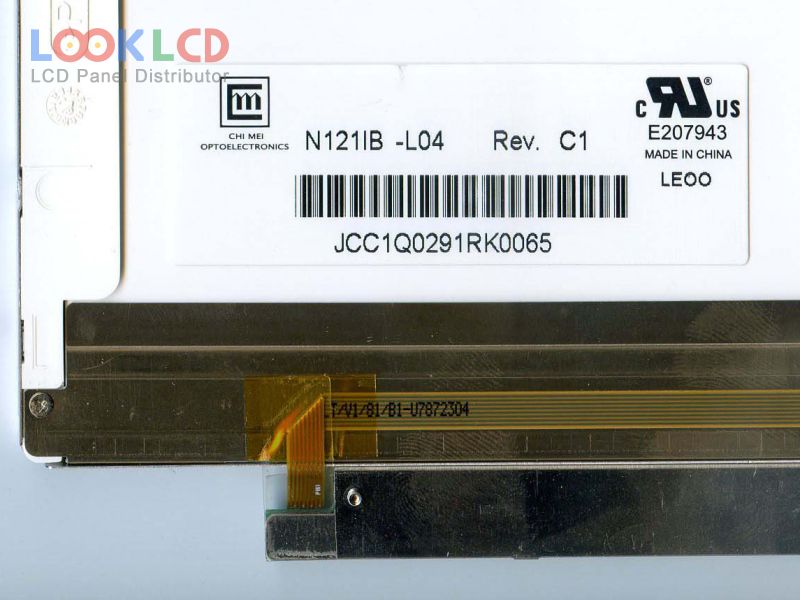

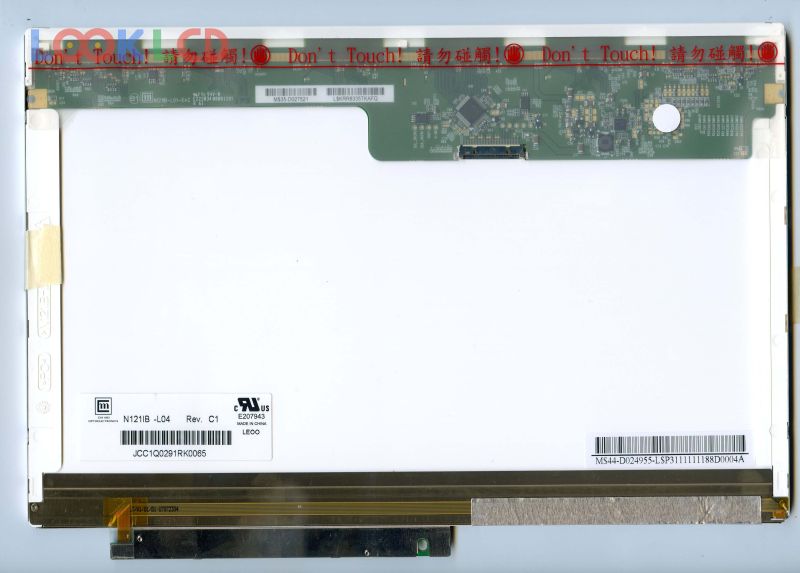

| Part Number | N121IB-L04 |
| Mark | Innolux |
| Gréisst | 12.1 |
| Applikatioun | NBPC |
| Opléisung | 1280×800 |
| Zesummesetzung | LCM |
| Hellegkeet | 220 |
| CR | 300:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | CMO |
| Panel Modell | N121IB-L04 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 12.1 inch |
| Resolutioun | 1280(RGB)×800 , WXGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 261.12×163.2 mm |
| skizzéieren | 275.8×189.6×5.2 mm |
| Form Stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Uewerfläch | Glare (Haze 0%), Hard coating (3H) |
| Hellegkeet | 220 cd/m² (Typ.) |
| Kontrast Verhältnis | 300:1 (Typ.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 3/7 (Typ.)(Tr/Td) |
| Vue Wénkel | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 7S6PWLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6-bit), 20 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
| LB121S1-A2 | LG Display | 12.1 | 800×600 |
| N121I2-L01 | Innolux | 12.1 | 1280×800 |
| N121I3-L01 | Innolux | 12.1 | 1280×800 |
| N121I3-L03 | Innolux | 12.1 | 1280×800 |
| N121I6-L01 | Innolux | 12.1 | 1280×800 |
| N121I7-L01 | Innolux | 12.1 | 1280×800 |
| N121IA-L02 | Innolux | 12.1 | 1280×800 |
| N121IB-L04 | Innolux | 12.1 | 1280×800 |
| N121IB-L05 Rev.C1 | Innolux | 12.1 | 1280×800 |
| N121IB-L06 | Innolux | 12.1 | 1280×800 |
| B121EW01 V0 | AUO | 12.1 | 1280×800 |
| HSD121PHW1-A03 | HannStar | 12.1 | 1366×768 |
| LP150X05-A2M2 | LG Display | 15.0 | 1024×768 |
| LP171WU1-A4K3 | LG Display | 17.1 | 1920×1200 |
| LP171WU1-TLA5 | LG Display | 17.1 | 1920×1200 |
| LTN156AT02-D02 | Samsung | 15.6 | 1366×768 |
| LTN156AT23-W01 | Samsung | 15.6 | 1366×768 |
| LTN156AT34-D01 | Samsung | 15.6 | 1366×768 |
| N150X3-L09 | Innolux | 15.0 | 1024×768 |
| TX39D80VC1GAA | KOE | 15.4 | 1280×800 |
