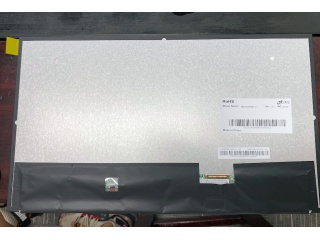

| Part Number | MG1561B01-2 |
| Mark | CSOT |
| Gréisst | 15.6 |
| Applikatioun | Digital Signage |
| Opléisung | 1920×1080 |
| Zesummesetzung | LCM, a-Si TFT-LCD |
| Hellegkeet | |
| CR | 3000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED , 15K hours , With LED Driver |
| Interface | LVDS |
| Fabrikant beschwéiert | CSOT |

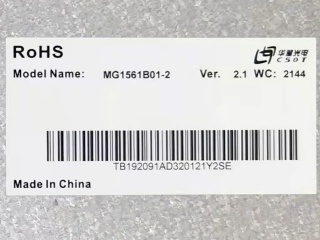

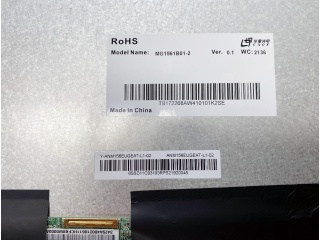

| Modell Numm | MG1561B01-2 |
| Écran Gréisst | 15.6 inch |
| Écran Typ | LCM, a-Si TFT-LCD |
| Pixel Zuel | 1920(RGB)×1080 (FHD) 141PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 344.16 × 193.59 (H×V) |
| Kontur (mm) | 351.86 × 206.332 × 6.31 (H×V×D) |
| Bezel Beräich (mm) | - |
| Behandlung | Antiglare (Haze 25%), Hard coating (3H) |
| luminance | 250 cd/m² (Typ.) |
| Kontrast Verhältnis | 3000 : 1 (Typ.) (TM) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10) |
| Äntwert | 30 (Typ.)(Tr+Td) ms |
| gutt Vue op | Symmetry |
| Aarbecht Modus | VA, Normally Black, Transmissive |
| Faarfdéift | 16.7M 72% NTSC |
| mass | 530g (Typ.) |
| benotzt fir | Digital Signage |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |
| Signal Typ | LVDS (2 ch, 8-bit) , Connector 40 pins |
| Spannungsversuergung | 12.0V (Typ.) |
| max. Bewäertungen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
