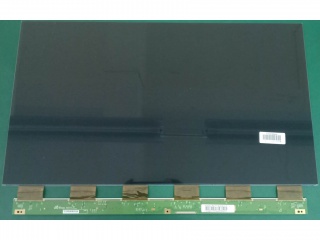

| Part Number | M236HJJ-P02 Rev.C3 |
| Mark | Innolux |
| Gréisst | 23.6 |
| Applikatioun | Desktop Monitor |
| Opléisung | 1920×1080 |
| Zesummesetzung | a-Si TFT-LCD , CELL |
| Hellegkeet | |
| CR | 3000:1 |
| Faarwen | 16.7M |
| Géigeliicht | No |
| Interface | LVDS |
| Panel Mark | Innolux |
| Panel Gréisst | 23.6" |
| Resolutioun | 1920(RGB)×1080, FHD, 93PPI |
| Affichage Beräich | 521.28(W)×293.22(H) mm |
| Kontur Gréisst | 534.28(W)×306.252(H) mm |
| Hellegkeet | 0 cd/m² |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10) |
| beschte Vue op | Symmetry |
| Glas Déift | - |
| weisen Faarwen | 16.7M 72% NTSC |
| Frequenz | 60Hz |
| Chauffeur ic | COF Built-in 6 source chips |
| Panel Gewiicht | 512/530g (Typ./Max.) |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Input Volt | 5.0V (Typ.) |
| Ëmwelt | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Panel Modell | M236HJJ-P02 Rev.C3 |
| Panel Typ | a-Si TFT-LCD , CELL |
| Pixel Format | RGB Vertical Stripe |
| bezel Ouverture | - |
| Uewerfläch | Antiglare (Haze 25%), Hard coating (3H) |
| Kontrast Verhältnis | 3000:1 (Typ.) (TM) |
| Display Modus | Super MVA, Normally Black, Transmissive |
| Äntwert Zäit | 25 (Typ.)(G to G) |
| transmissivitéit | 4.6% (Typ.)(with Polarizer) |
| Lampe Typ | No B/L |
| Touchscreens | Without |
| Applikatioun | Desktop Monitor |
