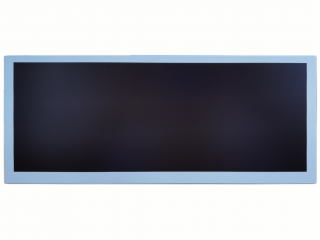

| Part Number | M102AWF2 R2 |
| Mark | IVO |
| Gréisst | 10.3 |
| Applikatioun | Automotive Display |
| Opléisung | 1920×720 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | 8S3P |
| Interface | LVDS |
| Panel Mark | IVO |
| Panel Modell | M102AWF2 R2 |
| Panel Gréisst | 10.3" |
| Panel Typ | a-Si TFT-LCD, LCM |
| Resolutioun | 1920(RGB)×720, 200PPI |
| Pixel Format | RGB Vertical Stripe |
| Affichage Beräich | 243.65(W)×91.37(H) mm |
| bezel Ouverture | 245.65(W)×93.66(H) mm |
| Kontur Gréisst | 262.04(W)×110.3(H) ×16(D) mm |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 800 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) (TM) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Display Modus | IPS, Normally Black, Transmissive |
| beschte Vue op | Symmetry |
| Äntwert Zäit | 20 (Typ.)(Tr+Td) |
| weisen Faarwen | 16.7M 75% NTSC |
| Lampe Typ | 8S3P WLED , 10K hours , Without Driver |
| Frequenz | 60Hz |
| Touchscreens | Without |
| Panel Gewiicht | 380g (Max.) |
| Applikatioun | Automotive Display |
| Signal Interface | LVDS (2 ch, 8-bit) , 50 pins Connector |
| Input Volt | 3.3V (Typ.) |
| Ëmwelt | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 3.0G (29.4 m/s²) |
