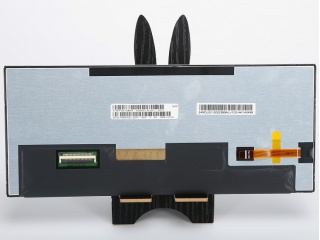

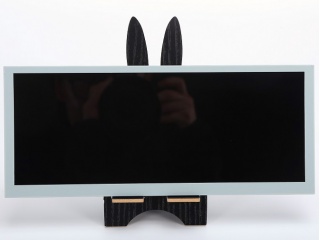

| Part Number | M102AWF2 R1 |
| Mark | IVO |
| Gréisst | 10.3 |
| Applikatioun | Automotive Display |
| Opléisung | 1920×720 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Mark | IVO |
| Modell | M102AWF2 R1 |
| diagonal Gréisst | 10.3 inch |
| Typ | a-Si TFT-LCD, LCM |
| Pixel Format | 1920(RGB)×720 200PPI |
| Configuratioun | RGB Vertical Stripe |
| aktiv Beräich | 243.65(H)×91.37(V) mm |
| kontur dim. | 262.04(H)×110.3(V) ×12.2(D) mm |
| bezel Beräich | 245.65(H)×93.66(V) mm |
| Behandlung | Hard coating (3H) |
| luminance | 800 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) (TM) |
| Vue Richtung | Symmetry |
| Äntwert Zäit | 20 (Typ.)(Tr+Td) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Betribssystemer Modus | IPS, Normally Black, Transmissive |
| Ënnerstëtzung Faarf | 16.7M 72% NTSC |
| Liichtquell | WLED [8S3P] , 10K hours , W/O Driver |
| Gewiicht | 380g (Max.) |
| entworf fir | Automotive Display |
| Frame Taux | 60Hz |
| Touch Panel | Without |
| Interface Typ | LVDS (2 ch, 8-bit) , 50 pins Connector |
| Stroumversuergung | 3.3V (Typ.) |
| Ëmwelt | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C ; Vibration Level: 3.0G (29.4 m/s²) |
