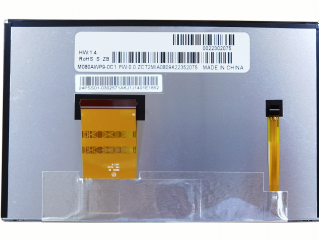

| Part Number | M080AWP9 R0 |
| Mark | IVO |
| Gréisst | 8.0 |
| Applikatioun | Automotive Display |
| Opléisung | 800×480 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 700:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | Parallel |
| Mark | IVO |
| Modell | M080AWP9 R0 |
| diagonal Gréisst | 8.0 inch |
| Typ | a-Si TFT-LCD, LCM |
| Pixel Format | 800(RGB)×480 [WVGA] 115PPI |
| Configuratioun | RGB Vertical Stripe |
| aktiv Beräich | 175.2(H)×105.12(V) mm |
| kontur dim. | 186.5(H)×117.22(V) ×6.65(D) mm |
| bezel Beräich | 177.4(H)×107.32(V) mm |
| Behandlung | Antiglare |
| luminance | 750 cd/m² (Typ.) |
| Kontrast Verhältnis | 700:1 (Typ.) (TM) |
| Vue Richtung | - |
| Äntwert Zäit | 13 (Typ.)(Tr+Td) |
| Vue Wénkel | 70/70/50/70 (Typ.)(CR≥10) |
| Betribssystemer Modus | TN, Normally White, Transmissive |
| Ënnerstëtzung Faarf | 262K 70% NTSC |
| Liichtquell | WLED [7S3P] , 30K hours , W/O Driver |
| Gewiicht | 195/215g (Typ./Max.) |
| entworf fir | Automotive Display |
| Frame Taux | 60Hz |
| Touch Panel | Without |
| Interface Typ | Parallel RGB (1 ch, 6-bit) , 60 pins FPC |
| Stroumversuergung | 3.3/10.6/22/-7.0V (Typ.)(VCC/VDDA/VGH/VGL) |
| Ëmwelt | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C |
