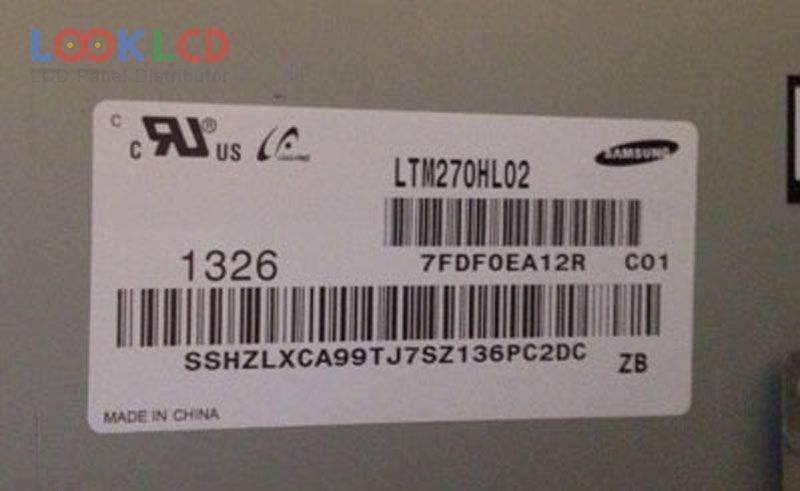

| Part Number | LTM270HL02 |
| Mark | Samsung |
| Gréisst | 27.0 |
| Applikatioun | DMPC |
| Opléisung | 1920×1080 |
| Zesummesetzung | LCM |
| Hellegkeet | 300 |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | SAMSUNG |
| Panel Modell | LTM270HL02 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 27.0 inch |
| Resolutioun | 1920(RGB)×1080 , FHD |
| Display Modus | PLS, Normally Black, Transmissive |
| aktiv Beräich | 597.888×336.312 mm |
| skizzéieren | 630×368.2×12.2 mm |
| Uewerfläch | Antiglare (Haze 25%), Hard coating (3H) |
| Hellegkeet | 300 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) |
| weisen Faarwen | 16.7M (6-bit + Hi-FRC), CIE193172% |
| Äntwert Zäit | 15 (Typ.)(G to G) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 13S3PWLEDWithout Driver |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins |
| Input Volt | 5.0V (Typ.) |
| Applikatioun | DMPC |
