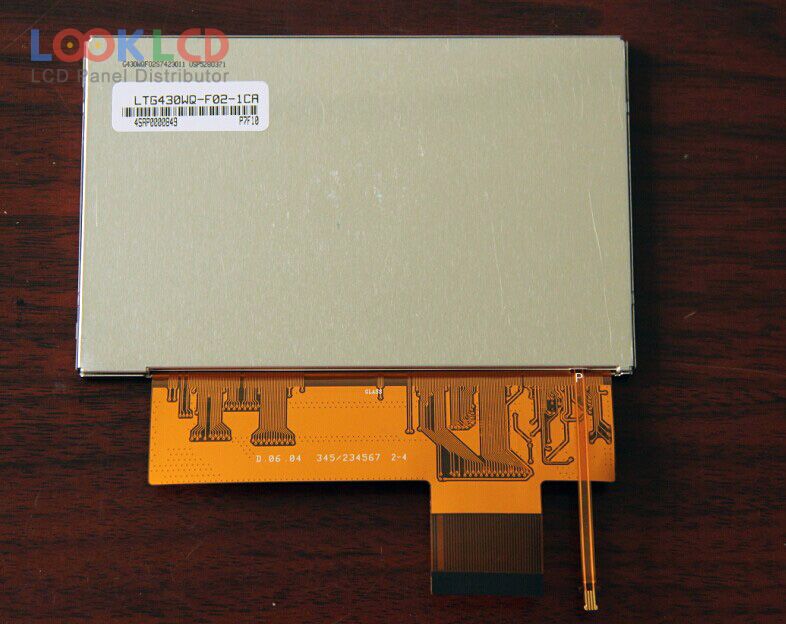

| Part Number | LTG430WQ-F02 |
| Mark | Samsung |
| Gréisst | 4.3 |
| Applikatioun | MP4 |
| Opléisung | 480×272 |
| Zesummesetzung | LCM |
| Hellegkeet | 165 |
| CR | 400:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | SAMSUNG |
| Panel Modell | LTG430WQ-F02 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 4.3 inch |
| Resolutioun | 480(RGB)×272 , WQVGA |
| Display Modus | PVA, Normally Black, Transmissive |
| aktiv Beräich | 95.04×53.856 mm |
| skizzéieren | 105.5×67.2 mm |
| Uewerfläch | Clear |
| Hellegkeet | 165 cd/m² (Typ.) |
| Kontrast Verhältnis | 400:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit) |
| Äntwert Zäit | 10/15 (Typ.)(Tr/Td) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 7S1PWLEDWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 8-bit), 40 pins |
| Input Volt | 2.5/5.0V (Typ.)(VDD/AVDD) |
| Applikatioun | MP4 |
