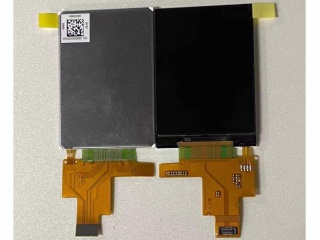

| Part Number | LS019B3SX01 |
| Mark | Sharp |
| Gréisst | 1.9 |
| Applikatioun | Handheld & PDA |
| Opléisung | 240×320 |
| Zesummesetzung | LTPS TFT-LCD, LCM |
| Hellegkeet | |
| CR | 2000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | MIPI |
| Panel Mark | Sharp |
| Panel Modell | LS019B3SX01 |
| Panel Gréisst | 1.9" |
| Panel Typ | LTPS TFT-LCD, LCM |
| Resolutioun | 240(RGB)×320, QVGA, 210PPI |
| Pixel Format | RGB Vertical Stripe |
| Affichage Beräich | 29.172(W)×38.4285(H) mm |
| bezel Ouverture | 30.172(W)×40.025(H) mm |
| Kontur Gréisst | 33.57(W)×48.13(H) ×2.95(D) mm |
| Uewerfläch | - |
| Hellegkeet | 650 cd/m² (Typ.) |
| Kontrast Verhältnis | 2000:1 (Typ.) (TM) |
| Vue Wénkel | 80/80/80/80 (Min.)(CR≥10) |
| Display Modus | New Mode2, Normally Black, Transmissive |
| beschte Vue op | Symmetry |
| Äntwert Zäit | 20 (Typ.)(Tr/Td) |
| weisen Faarwen | 16.7M 50% NTSC |
| Lampe Typ | WLED , Without Driver |
| Frequenz | - |
| Touchscreens | Without |
| Panel Gewiicht | 10.5g (Typ.) |
| Applikatioun | Handheld & PDA |
| Signal Interface | MIPI (1 data lane) , 16 pins Connector |
| Input Volt | 1.8/3.3V (Typ.)(VDDI/VCI) |
| Ëmwelt | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
