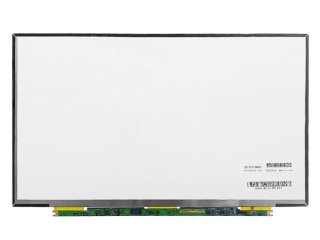

| Part Number | LQ133T1JW23 |
| Mark | Sharp |
| Gréisst | 13.3 |
| Applikatioun | Laptop |
| Opléisung | 2560×1440 |
| Zesummesetzung | Oxide TFT-LCD, LCM |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | eDP |
| Mark | Sharp |
| Modell | LQ133T1JW23 (SHP1412) |
| diagonal Gréisst | 13.3 inch |
| Typ | Oxide TFT-LCD, LCM |
| Pixel Format | 2560(RGB)×1440 [Quad-HD] 221PPI |
| Configuratioun | RGB Vertical Stripe |
| aktiv Beräich | 293.76(H)×165.24(V) mm |
| kontur dim. | 304.98(H)×187.9(V) ×2.6(D) mm |
| bezel Beräich | - |
| Behandlung | Antiglare (Haze 42%) |
| luminance | 350 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) (TM) |
| Vue Richtung | Symmetry |
| Äntwert Zäit | 25 (Typ.)(Tr+Td) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10) |
| Betribssystemer Modus | VA, Normally Black, Transmissive |
| Ënnerstëtzung Faarf | 16.7M 100% sRGB |
| Liichtquell | WLED , 10K hours , With LED Driver |
| Form Stil | Slim (PCBA Flat, T≤3.2mm) |
| entworf fir | Laptop |
| Frame Taux | 60Hz |
| Touch Panel | Without |
| Interface Typ | eDP (4 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , 40 pins Connector |
| Stroumversuergung | 3.3V (Typ.) |
| Ëmwelt | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| CLAA133UA01 | CPT | 13.3 | 1600×900 |
| LP133WH1-TLA3 | LG Display | 13.3 | 1366×768 |
| LQ133K1LA04 | SHARP | 13.3 | 1280×800 |
| LQ133K1LA4A | SHARP | 13.3 | 1280×800 |
| LQ133K1LD4B | SHARP | 13.3 | 1280×800 |
| LQ133M1JW03 | SHARP | 13.3 | 1920×1080 |
| LQ133T1JW01 | SHARP | 13.3 | 2560×1440 |
| LQ133T1JW02 | SHARP | 13.3 | 2560×1440 |
| LQ133T1JW19 | SHARP | 13.3 | 2560×1440 |
| LSN133DL02-A02 | Samsung | 13.3 | 2560×1600 |
