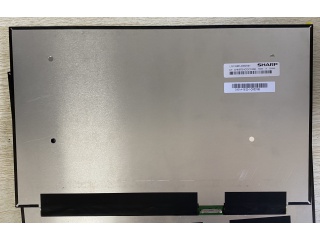

| Part Number | LQ133M1JX36 |
| Mark | Sharp |
| Gréisst | 13.3 |
| Applikatioun | Laptop |
| Opléisung | 1920×1080 |
| Zesummesetzung | Oxide TFT-LCD, LCM |
| Hellegkeet | |
| CR | 1500:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | eDP |
| Panel Mark | Sharp |
| Panel Modell | LQ133M1JX36 (SHP14A9) |
| Panel Gréisst | 13.3" |
| Panel Typ | Oxide TFT-LCD, LCM |
| Resolutioun | 1920(RGB)×1080, FHD, 166PPI |
| Pixel Format | RGB Vertical Stripe |
| Affichage Beräich | 293.76(W)×165.24(H) mm |
| bezel Ouverture | - |
| Kontur Gréisst | 298.76(W)×186.04(H) ×2.1(D) mm |
| Uewerfläch | Glare (Haze 0%), Hard coating |
| Hellegkeet | 470 cd/m² (Typ.) |
| Kontrast Verhältnis | 1500:1 (Typ.) (TM) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10) |
| Display Modus | IPS, Normally Black, Transmissive |
| beschte Vue op | Symmetry |
| Äntwert Zäit | 30 (Typ.)(Tr+Td) |
| weisen Faarwen | 16.7M 100% sRGB |
| Lampe Typ | WLED , 15K hours , With LED Driver |
| Frequenz | 60Hz |
| Touchscreens | Without |
| Form Stil | Slim (PCBA Flat, T≤3.2mm) |
| Applikatioun | Laptop |
| Signal Interface | eDP (2 Lanes) , eDP1.4 , 2.16G/lane , 30 pins Connector |
| Input Volt | 3.3V (Typ.) |
| Ëmwelt | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 60 °C |
