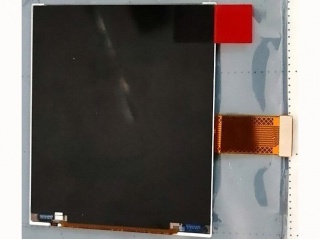

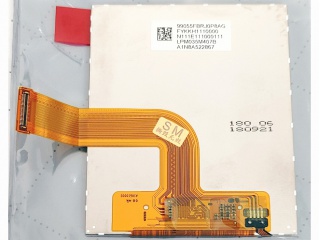

| Part Number | LPM035M407B |
| Mark | JDI |
| Gréisst | 3.5 |
| Applikatioun | HMD VR AR |
| Opléisung | 1440×1600 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | MIPI |
| Mark | JDI |
| Modell | LPM035M407B |
| diagonal Gréisst | 3.5 inch |
| Typ | a-Si TFT-LCD, LCM |
| Pixel Format | 1440(RGB)×1600 615PPI |
| Configuratioun | RGB Vertical Stripe |
| aktiv Beräich | 59.4(H)×66(V) mm |
| kontur dim. | 62.2(H)×73.6(V) mm |
| bezel Beräich | - |
| Behandlung | Hard coating |
| Vue Richtung | Symmetry |
| Äntwert Zäit | - |
| Vue Wénkel | - |
| Betribssystemer Modus | IPS, Normally Black, Transmissive |
| Ënnerstëtzung Faarf | 16.7M |
| Liichtquell | WLED [5S2P] |
| Gewiicht | 17.0g (Typ.) |
| entworf fir | HMD VR AR |
| Frame Taux | 90Hz |
| Touch Panel | Without |
| Interface Typ | MIPI (4 data lanes) |
| Stroumversuergung | 1.8/5.7/-5.7V (Typ.)(VDDI/AVDD/AVEE) |
| Ëmwelt | Operating Temperature: -10 ~ 55 °C ; Storage Temperature: -20 ~ 70 °C |
