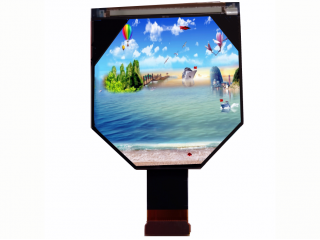

| Part Number | LPM021M528A |
| Mark | JDI |
| Gréisst | 2.1 |
| Applikatioun | HMD VR AR |
| Opléisung | 1600×1600 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 700:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | MIPI |
| Mark | JDI |
| Modell | LPM021M528A |
| diagonal Gréisst | 2.1 inch |
| Typ | a-Si TFT-LCD, LCM |
| Pixel Format | 1600(RGB)×1600 1058PPI |
| Configuratioun | RGB Vertical Stripe |
| aktiv Beräich | 38.4(H)×38.4(V) mm |
| kontur dim. | 41.2(H)×45.3(V) mm |
| bezel Beräich | - |
| Behandlung | Hard coating |
| luminance | 430 cd/m² (Typ.) |
| Kontrast Verhältnis | 700:1 (Typ.) (TM) |
| Vue Richtung | Symmetry |
| Äntwert Zäit | 4.5 (Typ.)(G to G) |
| Vue Wénkel | - |
| Betribssystemer Modus | IPS, Normally Black, Transmissive |
| Ënnerstëtzung Faarf | 16.7M 71% NTSC |
| Liichtquell | WLED [4S2P] , W/O Driver |
| Gewiicht | 5.90g (Typ.) |
| entworf fir | HMD VR AR |
| Frame Taux | 90Hz |
| Touch Panel | Without |
| Interface Typ | MIPI (2 ch, 4 data lanes) , 24 pins Connector |
| Stroumversuergung | 1.8/5.7/-5.7V (Typ.)(IOVCC/VSP/VSN) |
| Ëmwelt | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 70 °C |
