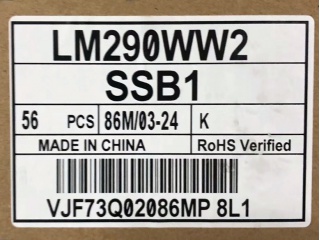

| Part Number | LM290WW2-SSB1 |
| Mark | LG Display |
| Gréisst | 29.0 |
| Applikatioun | Desktop Monitor Indu |
| Opléisung | 2560×1080 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | 17S4P |
| Interface | LVDS |
| Panel Mark | LG Display |
| Panel Gréisst | 29.0" |
| Resolutioun | 2560(RGB)×1080, CSHD, 96PPI |
| Affichage Beräich | 672.768(W)×283.824(H) mm |
| Kontur Gréisst | 693.6(W)×308.9(H) ×17.5(D) mm |
| Hellegkeet | 300 cd/m² (Typ.) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10) |
| beschte Vue op | Symmetry |
| weisen Faarwen | 16.7M 99% sRGB |
| Frequenz | 60Hz |
| Panel Gewiicht | 3.12/3.28Kgs (Typ./Max.) |
| Signal Interface | LVDS (4 ch, 8-bit) , 92 pins Connector |
| Input Volt | 10.0V (Typ.) |
| Ëmwelt | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Panel Modell | LM290WW2-SSB1 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| bezel Ouverture | - |
| Uewerfläch | Antiglare (Haze 25%), Hard coating (3H) |
| Kontrast Verhältnis | 1000:1 (Typ.) (TM) |
| Display Modus | IPS, Normally Black, Transmissive |
| Äntwert Zäit | 14 (Typ.)(G to G) |
| Lampe Typ | 17S4P WLED , 30K hours , Without Driver |
| Touchscreens | Without |
| Applikatioun | Desktop Monitor Industrial Medical Imaging |
