LG Display LM230WFA-SLZ1 Dateblat, Spezifizéierung, Aktien, Applikatioun www.looklcd-lu.com
LookLCD LookLCD

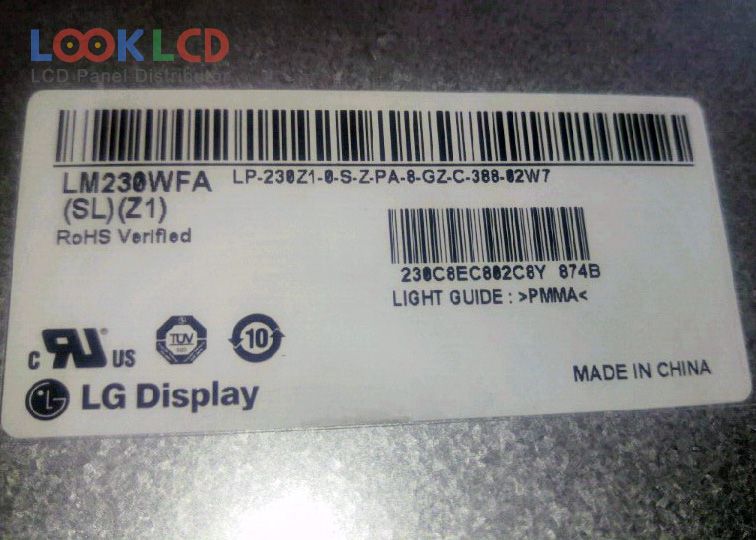

LM230WFA-SLZ1

LM230WFA-SLZ1
LM230WFA-SLZ1 thumb
Mark
LG Display
Gréisst
23.0
Applikatioun
DMPC
Opléisung
1920×1080
Zesummesetzung
LCM
Hellegkeet
CR
Faarwen
16.7M
Backlight
WLED
Interface
LVDS
In Stock
110
Spezifikatioune

Part Number LM230WFA-SLZ1
MarkLG Display
Gréisst23.0
ApplikatiounDMPC
Opléisung1920×1080
ZesummesetzungLCM
Hellegkeet
CR
Faarwen16.7M
GéigeliichtWLED
InterfaceLVDS
Panel MarkLG Display
Panel ModellLM230WFA-SLZ1
Panel Typ a-Si TFT-LCD , LCM
Panel Gréisst23.0 inch
Resolutioun1920(RGB)×1080 , FHD
Display Moduse-IPS, Normally Black, Transmissive
aktiv Beräich509.184×286.416 mm
skizzéieren533.2×312×11 mm
UewerflächClear, Antireflection
Hellegkeet
Kontrast Verhältnis
weisen Faarwen16.7M (6-bit + Hi-FRC), CIE193172%
Äntwert Zäit14 (Typ.)(G to G)
Vue Wénkel89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)
Frequenz60Hz
Lampe Typ2 stringsWLEDWithout Driver
Signal InterfaceLVDS (2 ch, 8-bit), 30 pins
Input Volt5.0V (Typ.)
ApplikatiounDMPC
Famill Modell
LM230WF2-SLA2 LG Display 23.0 1920×1080
LM230WF3-SLB1 LG Display 23.0 1920×1080
LM230WF3-SLD1 LG Display 23.0 1920×1080
LM230WF3-SSA1 LG Display 23.0 1920×1080
LM230WF5-TLD1 LG Display 23.0 1920×1080
LM230WF5-TLD5 LG Display 23.0 1920×1080
LM230WF5-TLF1 LG Display 23.0 1920×1080
LM230WF5-TLF4 LG Display 23.0 1920×1080
LM230WF8-TLA2 LG Display 23.0 1920×1080
LM230WFA-SLZ1 LG Display 23.0 1920×1080
