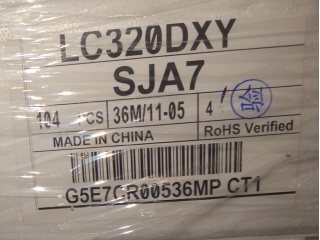

| Part Number | LC320DXY-SJA7 |
| Mark | LG Display |
| Gréisst | 32.0 |
| Applikatioun | TV Sets |
| Opléisung | 1366×768 |
| Zesummesetzung | CELL , a-Si TFT-LC |
| Hellegkeet | |
| CR | 1200:1 |
| Faarwen | 16.7M |
| Géigeliicht | No B/L |
| Interface | LVDS |
| Fabrikant beschwéiert | LG Display |
| Modell Numm | LC320DXY-SJA7 |
| Écran Gréisst | 32.0 inch |
| Écran Typ | CELL , a-Si TFT-LCD |
| Pixel Zuel | 1366(RGB)×768 (WXGA) 49PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 697.685 × 392.256 (H×V) |
| Kontur (mm) | 715 × 411 × 1.4 (H×V×D) |
| Bezel Beräich (mm) | - |
| Behandlung | Antiglare (Haze 1%), Hard coating (3H) |
| luminance | 0 cd/m² |
| Kontrast Verhältnis | 1200 : 1 (Typ.) (TM) |
| Vue Wénkel | 89/89/89/89 (Min.)(CR≥10) |
| Äntwert | 8/10 (Typ.)(Tr/Td) ms |
| gutt Vue op | Symmetry |
| Aarbecht Modus | IPS, Normally Black, Transmissive |
| Glas deck | - |
| transmissivitéit | 6.45% (Typ.)(with Polarizer) |
| Faarfdéift | 16.7M 68% NTSC |
| mass | 860g (Typ.) |
| benotzt fir | TV Sets |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |
| Chauffer ic Lëscht | Built-in COF 2 source chips |
| Signal Typ | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Spannungsversuergung | 12.0V (Typ.) |
| max. Bewäertungen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
