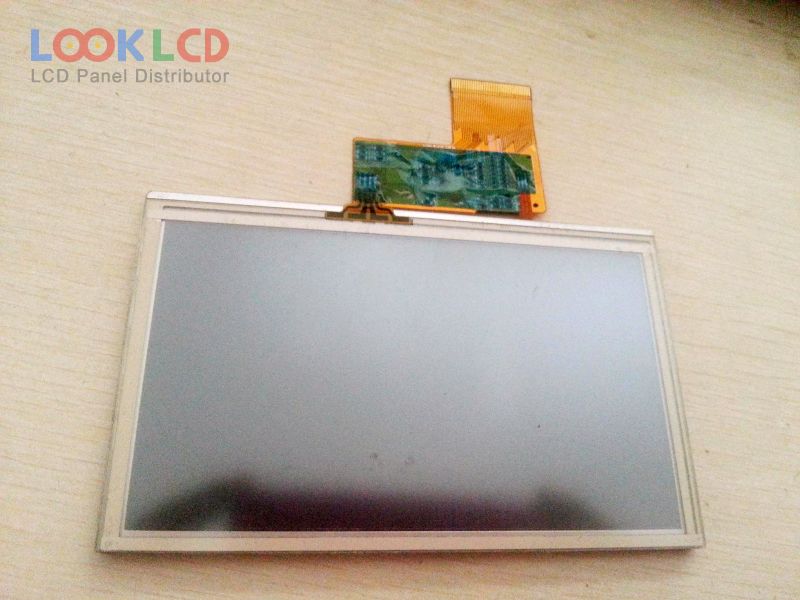

| Part Number | LB050WQ2-TD03 |
| Mark | LG Display |
| Gréisst | 5.0 |
| Applikatioun | PND |
| Opléisung | 480×272 |
| Zesummesetzung | LCM |
| Hellegkeet | 400 |
| CR | 500:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | LG.Philips LCD |
| Panel Modell | LB050WQ2-TD03 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 5.0 inch |
| Resolutioun | 480×272(RGB) , WQVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 110.736×62.424 mm |
| skizzéieren | 124×77.2×4.7 mm |
| Uewerfläch | Antiglare |
| Hellegkeet | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit) |
| Äntwert Zäit | 25 (Typ.)(Tr+Td) |
| Vue Wénkel | 65/65/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 6S2PWLEDWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 8-bit), 45 pins |
| Input Volt | 2.5/3.3V (Typ.)(VDD) |
| Applikatioun | PND |
