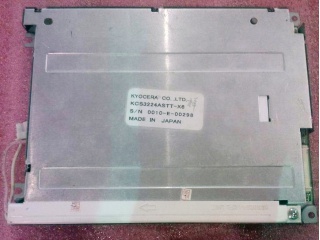

| Part Number | KCS3224ASTT-X6 |
| Mark | Kyocera |
| Gréisst | 5.7 |
| Applikatioun | Industrial |
| Opléisung | 320×240 |
| Zesummesetzung | CSTN-LCD , LCM |
| Hellegkeet | |
| CR | 25:1 |
| Faarwen | Color |
| Géigeliicht | - |
| Interface | Parallel |
| Mark | Kyocera |
| diagonal Gréisst | 5.7 inch |
| Pixel Format | 320(RGB)×240 [QVGA] 70PPI |
| aktiv Beräich | 115.2(H)×86.4(V) mm |
| luminance | - |
| Vue Richtung | - |
| Vue Wénkel | 50/50/30/30 (Typ.)(CR≥2) |
| Ënnerstëtzung Faarf | Color |
| Gewiicht | - |
| Frame Taux | 75Hz |
| Interface Typ | Parallel Data (1ch, 8-bit) Connector |
| Stroumversuergung | 5.0V (Typ.) |
| Ëmwelt | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Modell | KCS3224ASTT-X6 |
| Typ | CSTN-LCD , LCM |
| Configuratioun | RGB Vertical Stripe |
| kontur dim. | - |
| Kontrast Verhältnis | 25:1 (Typ.) (TM) |
| Äntwert Zäit | 220/110 (Typ.)(Tr/Td) |
| Betribssystemer Modus | STN, Normally Black, Transmissive |
| Liichtquell | |
| entworf fir | Industrial |
| Touch Panel | Without |
