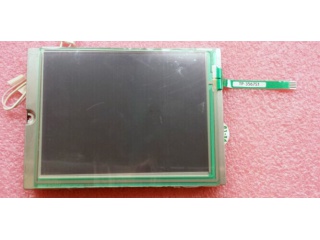

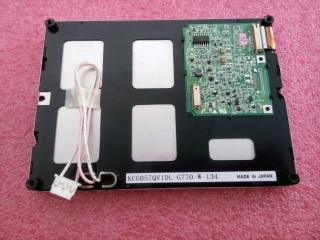

| Part Number | KCG057QV1DL-G770 |
| Mark | Kyocera |
| Gréisst | 5.7 |
| Applikatioun | Industrial |
| Opléisung | 320×240 |
| Zesummesetzung | CSTN-LCD, LCM |
| Hellegkeet | |
| CR | 55:1 |
| Faarwen | Color |
| Géigeliicht | CCFL |
| Interface | Parallel |
| Mark | Kyocera |
| Modell | KCG057QV1DL-G770 |
| diagonal Gréisst | 5.7 inch |
| Typ | CSTN-LCD, LCM |
| Pixel Format | 320(RGB)×240 [QVGA] 70PPI |
| Configuratioun | RGB Vertical Stripe |
| aktiv Beräich | 115.2(H)×86.4(V) mm |
| kontur dim. | 144(H)×104.8(V) ×15.3(D) mm |
| bezel Beräich | 119.4(H)×90.6(V) mm |
| Behandlung | Hard coating (2H) |
| luminance | - |
| Kontrast Verhältnis | 55:1 (Typ.) (TM) |
| Vue Richtung | - |
| Äntwert Zäit | 180/170 (Typ.)(Tr/Td) |
| Vue Wénkel | 50/50/20/35 (Typ.)(CR≥2) |
| Betribssystemer Modus | STN, Normally Black, Transmissive |
| Ënnerstëtzung Faarf | Color |
| Liichtquell | CCFL [1 pcs] |
| Gewiicht | 220g (Typ.) |
| entworf fir | Industrial |
| Frame Taux | 75Hz |
| Touch Panel | 4-wire Resistive Touch |
| Interface Typ | Parallel Data (1ch, 8-bit) Connector |
| Stroumversuergung | 3.3/5.0V (Typ.)(VDD) |
| Ëmwelt | Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C |
