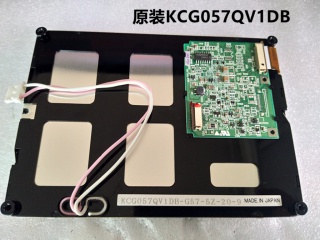

| Part Number | KCG057QV1DB-G57 |
| Mark | Kyocera |
| Gréisst | 5.7 |
| Applikatioun | Industrial |
| Opléisung | 320×240 |
| Zesummesetzung | CSTN-LCD, LCM |
| Hellegkeet | |
| CR | 60:1 |
| Faarwen | Color |
| Géigeliicht | 1 |
| Interface | |
| Panel Mark | Kyocera |
| Panel Modell | KCG057QV1DB-G57 |
| Panel Gréisst | 5.7" |
| Panel Typ | CSTN-LCD, LCM |
| Resolutioun | 320(RGB)×240, QVGA, 70PPI |
| Pixel Format | RGB Vertical Stripe |
| Affichage Beräich | 115.2(W)×86.4(H) mm |
| bezel Ouverture | - |
| Hellegkeet | - |
| Kontrast Verhältnis | 60:1 (Typ.) (TM) |
| Vue Wénkel | 50/50/20/35 (Typ.)(CR≥2) |
| Display Modus | STN, Normally Black, Transmissive |
| beschte Vue op | - |
| Äntwert Zäit | 180/170 (Typ.)(Tr/Td) |
| weisen Faarwen | Color |
| Lampe Typ | 1 pcs CCFL , Optional |
| Frequenz | 75Hz |
| Touchscreens | Without |
| Panel Gewiicht | - |
| Applikatioun | Industrial |
| Ëmwelt | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C |
