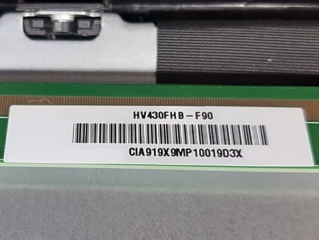

| Part Number | HV430FHB-F90 |
| Mark | BOE |
| Gréisst | 43 |
| Applikatioun | TV Sets |
| Opléisung | 1920×1080 |
| Zesummesetzung | a-Si TFT-LCD , CELL |
| Hellegkeet | |
| CR | 1200:1 |
| Faarwen | 1.07B |
| Géigeliicht | No |
| Interface | |
| Panel Mark | BOE |
| Panel Gréisst | 43" |
| Resolutioun | 1920(RGB)×1080, FHD, 51PPI |
| Affichage Beräich | 940.896(W)×529.254(H) mm |
| Kontur Gréisst | 950.896(W)×541.75(H) ×1.4(D) mm |
| Hellegkeet | 0 cd/m² |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10) |
| beschte Vue op | Symmetry |
| Glas Déift | 0.50+0.50 mm |
| weisen Faarwen | 1.07B 72% NTSC |
| Frequenz | 60Hz |
| Gewiicht | 1.51Kgs (Typ.) |
| Panel Modell | HV430FHB-F90 |
| Panel Typ | a-Si TFT-LCD , CELL |
| Pixel Format | RGB Vertical Stripe |
| bezel Ouverture | - |
| Uewerfläch | Antiglare (Haze 1%), Hard coating (3H) |
| Kontrast Verhältnis | 1200:1 (Typ.) (TM) |
| Display Modus | ADS, Normally Black, Transmissive |
| Äntwert Zäit | 8 (Typ.)(G to G) |
| transmissivitéit | 6.3% (Typ.)(with Polarizer) |
| Lampe Typ | No B/L |
| Touchscreens | Without |
| Applikatioun | TV Sets |
