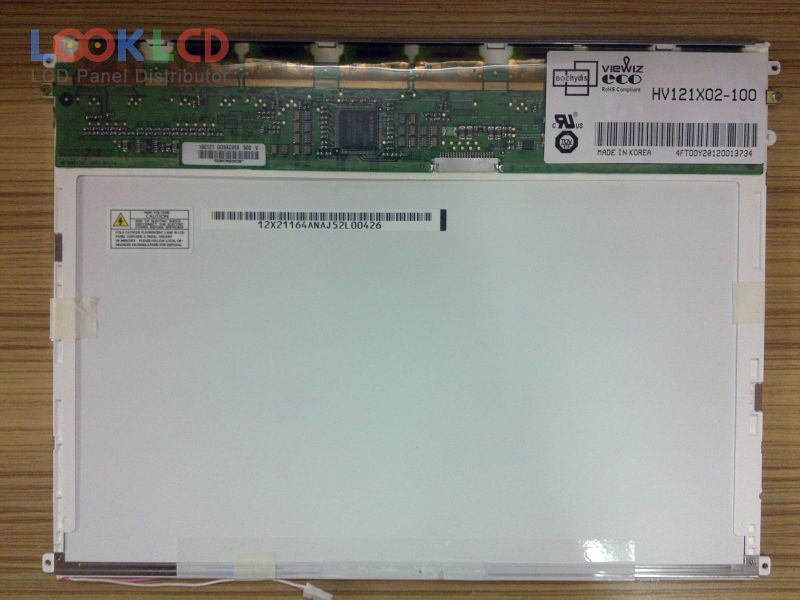

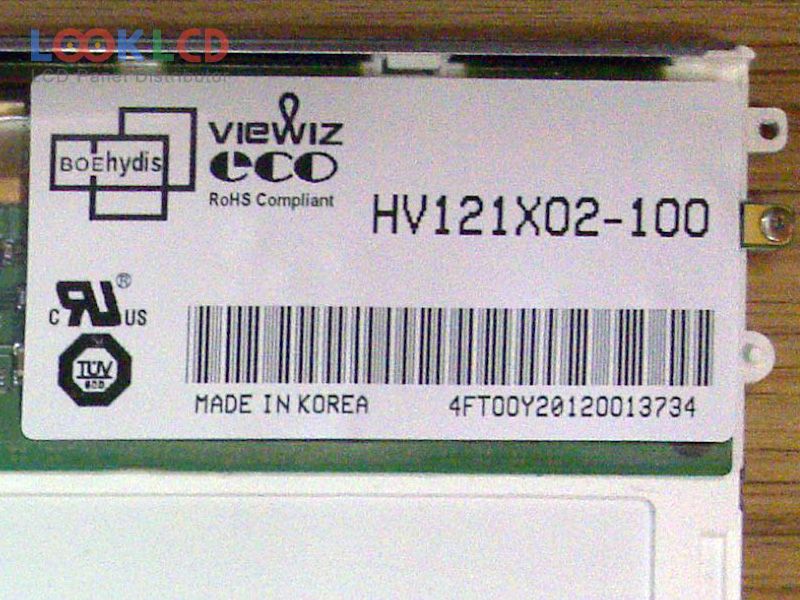

| Part Number | HV121X02-100 |
| Mark | HYDIS |
| Gréisst | 12.1 |
| Applikatioun | IA |
| Opléisung | 1024×768 |
| Zesummesetzung | CELL |
| Hellegkeet | 0 |
| CR | 450:1 |
| Faarwen | 262K |
| Géigeliicht | No B/L |
| Interface | LVDS |
| Panel Mark | BOE HYDIS |
| Panel Modell | HV121X02-100 |
| Panel Typ | a-Si TFT-LCD , CELL |
| Panel Gréisst | 12.1 inch |
| Resolutioun | 1024(RGB)×768 , XGA |
| Display Modus | AFFS, Normally Black, Transmissive |
| aktiv Beräich | 245.76×184.32 mm |
| Uewerfläch | Glare (Haze 0%), Antireflection |
| transmissivitéit | 5.91% (Typ.)(with Polarizer) |
| Kontrast Verhältnis | 450:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193140% |
| Äntwert Zäit | 32 (Typ.)(Tr+Td) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Signal Interface | LVDS (1 ch, 6-bit), 20 pins |
| Input Volt | 3.3V (Typ.) |
