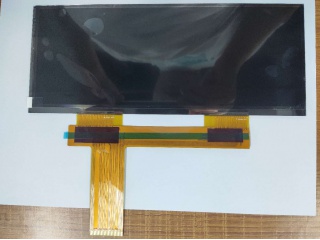

| Part Number | HSD103IPW1-A10-0299 |
| Mark | HannStar |
| Gréisst | 10.3 |
| Applikatioun | Automotive Display |
| Opléisung | 1280×480 |
| Zesummesetzung | CELL, a-Si TFT-LCD |
| Hellegkeet | |
| CR | 900:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | No B/L |
| Interface | |
| Fabrikant beschwéiert | HannStar |
| Modell Numm | HSD103IPW1-A10-0299 |
| Écran Gréisst | 10.3 inch |
| Écran Typ | CELL, a-Si TFT-LCD |
| Pixel Zuel | 1280(RGB)×480 (DVGA) 133PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 243.84 × 91.44 (H×V) |
| Kontur (mm) | 253 × 103.3 × 1.25 (H×V×D) |
| Bezel Beräich (mm) | - |
| Behandlung | Antiglare, Hard coating (3H) |
| luminance | 0 cd/m² |
| Kontrast Verhältnis | 900 : 1 (Typ.) (TM) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Äntwert | 30 (Typ.)(Tr+Td) ms |
| gutt Vue op | Symmetry |
| Aarbecht Modus | IPS Pro, Normally Black, Transmissive |
| Glas deck | 0.50+0.50 mm |
| transmissivitéit | 4.7% (Typ.)(with Polarizer) |
| Faarfdéift | 262K/16.7M 70% NTSC |
| mass | TBD |
| benotzt fir | Automotive Display |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |
| Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
