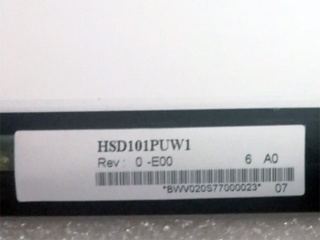

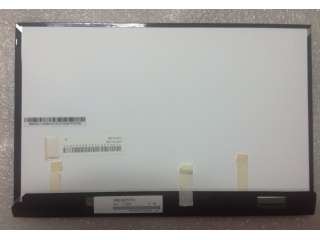

| Part Number | HSD101PUW1-E00 |
| Mark | HannStar |
| Gréisst | 10.1 |
| Applikatioun | Pad & Tablet |
| Opléisung | 1920×1200 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | MIPI |
| Mark | HannStar |
| diagonal Gréisst | 10.1 inch |
| Pixel Format | 1920(RGB)×1200 [WUXGA] 225PPI |
| aktiv Beräich | 216.576(H)×135.36(V) mm |
| luminance | - |
| Vue Richtung | Symmetry |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10) |
| Ënnerstëtzung Faarf | 16.7M 50% NTSC |
| Gewiicht | - |
| Frame Taux | 60Hz |
| Interface Typ | MIPI (4 data lanes) , 39 pins Connector |
| Stroumversuergung | 3.3V (Typ.) |
| Ëmwelt | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Modell | HSD101PUW1-E00 |
| Typ | a-Si TFT-LCD , LCM |
| Configuratioun | RGB Vertical Stripe |
| kontur dim. | - |
| Kontrast Verhältnis | 1000:1 (Typ.) (TM) |
| Äntwert Zäit | 25 (Typ.)(Tr+Td) |
| Betribssystemer Modus | IPS Pro, Normally Black, Transmissive |
| Liichtquell | WLED , 10K hours |
| entworf fir | Pad & Tablet |
| Touch Panel | Without |
| HSD101PFW2-B00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW2-C00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW3-A00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW4-B01 | HannStar | 10.1 | 1024×600 |
| HSD101PUW1-A00 | HannStar | 10.1 | 1920×1200 |
| HSD101PWW1-A00 Rev.4 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-B00 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-F01 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-G10 | HannStar | 10.1 | 1280×800 |
| HSD101PWW2-A01 | HannStar | 10.1 | 1280×800 |
