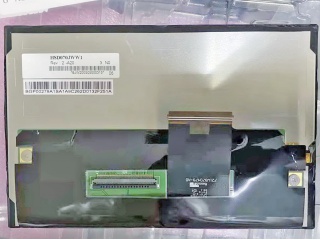

| Part Number | HSD070JWW1-A20 |
| Mark | HannStar |
| Gréisst | 7.0 |
| Applikatioun | Automotive Display |
| Opléisung | 1280×768 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | HannStar |
| Panel Gréisst | 7.0" |
| Resolutioun | 1280(RGB)×768, WXGA, 213PPI |
| Affichage Beräich | 152.448(W)×91.4688(H) mm |
| Hellegkeet | - |
| Vue Wénkel | - |
| beschte Vue op | Symmetry |
| weisen Faarwen | 16.7M |
| Frequenz | 60Hz |
| Panel Gewiicht | - |
| Signal Interface | LVDS (1 ch, 8-bit) + SPI , 60 pins FPC |
| Input Volt | 3.3V (Typ.) |
| Ëmwelt | Operating Temp.: -40 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C |
| Panel Modell | HSD070JWW1-A20 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| bezel Ouverture | - |
| Kontrast Verhältnis | 1000:1 (Min.) (TM) |
| Display Modus | IPS Pro, Normally Black, Transmissive |
| Äntwert Zäit | 25 (Max.)(Tr+Td) |
| Lampe Typ | WLED |
| Touchscreens | - |
| Applikatioun | Automotive Display |
