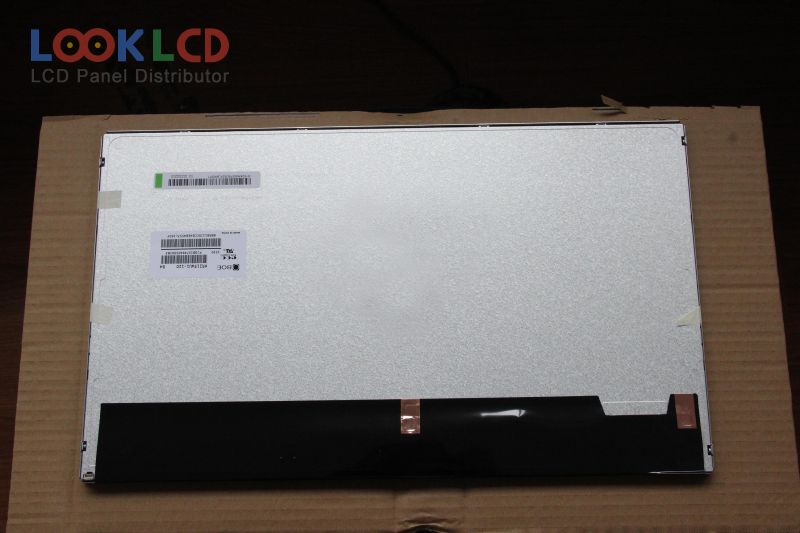

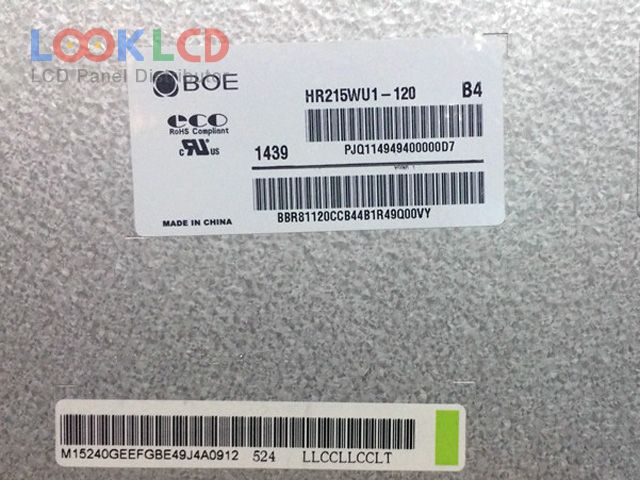

| Part Number | HR215WU1-120 |
| Mark | BOE |
| Gréisst | 21.5 |
| Applikatioun | DMPC |
| Opléisung | 1920×1080 |
| Zesummesetzung | LCM |
| Hellegkeet | 250 |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | BOE |
| Panel Modell | HR215WU1-120 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 21.5 inch |
| Resolutioun | 1920(RGB)×1080 , FHD |
| Display Modus | FFS, Normally Black, Transmissive |
| aktiv Beräich | 476.64×268.11 mm |
| skizzéieren | 495.6×292.2×10.7 mm |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 250 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) |
| weisen Faarwen | 16.7M (6-bit + Hi-FRC), sRGB98% |
| Äntwert Zäit | 14 (Typ.)(Tr+Td) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 17S4PWLEDWithout Driver |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins |
| Input Volt | 5.0V (Typ.) |
| Applikatioun | DMPC |
| LM190E02-A4 | LG Display | 19.0 | 1280×1024 |
| LM201WE2-SLA1 | LG Display | 20.1 | 1680×1050 |
| LTM201U1-L01 | Samsung | 20.1 | 1600×1200 |
| M170EG01 VD | AUO | 17.0 | 1280×1024 |
| M200RW01 V3 | AUO | 20.0 | 1600×900 |
| M201UN04 V0 | AUO | 20.1 | 1600×1200 |
| M240HTN01.1 | AUO | 24.0 | 1920×1080 |
| MT190AW02 V.W | Innolux | 19.0 | 1440×900 |
| MT220WW01 V.5 | Innolux | 22.0 | 1680×1050 |
| TX43D21VC0CAA | JDI | 17.0 | 1280×1024 |
