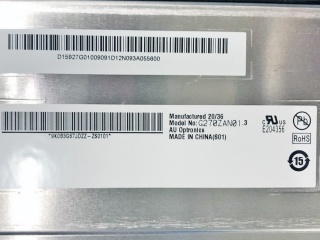

| Part Number | G270ZAN01.3 |
| Mark | AUO |
| Gréisst | 27.0 |
| Applikatioun | Industrial Medical I |
| Opléisung | 3840×2160 |
| Zesummesetzung | LCM , a-Si TFT-LCD |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | 10S8P WLED , 30K hours , No Driver |
| Interface | eDP |
| Fabrikant beschwéiert | AUO |
| Modell Numm | G270ZAN01.3 |
| Écran Gréisst | 27.0 inch |
| Écran Typ | LCM , a-Si TFT-LCD |
| Pixel Zuel | 3840(RGB)×2160 (UHD) 163PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 596.16 × 335.34 (H×V) |
| Kontur (mm) | 630 × 368.2 × 19.8 (H×V×D) |
| Bezel Beräich (mm) | 602.0 × 340.4 (H×V) |
| Behandlung | Antiglare, Hard coating (3H) |
| luminance | 350 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000 : 1 (Typ.) (TM) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10) |
| Äntwert | 16/25 (Typ./Max.)(Tr+Td) ms |
| gutt Vue op | Symmetry |
| Aarbecht Modus | AHVA, Normally Black, Transmissive |
| Faarfdéift | 16.7M 99% Adobe RGB |
| mass | 3.30Kgs (Typ.) |
| benotzt fir | Industrial Medical Imaging |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |
| Signal Typ | eDP (4 Lanes) , HBR2 (5.4G/lane) , 51 pins Connector |
| Spannungsversuergung | 12.0V (Typ.) |
| max. Bewäertungen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
