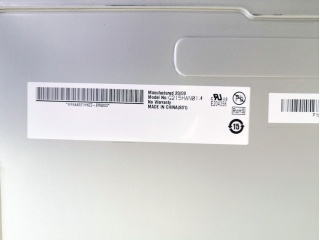

| Part Number | G215HAN01.4 |
| Mark | AUO |
| Gréisst | 21.5 |
| Applikatioun | Industrial Gaming |
| Opléisung | 1920×1080 |
| Zesummesetzung | LCM, a-Si TFT-LCD |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED , No Driver |
| Interface | LVDS |
| Fabrikant beschwéiert | AUO |
| Modell Numm | G215HAN01.4 |
| Écran Gréisst | 21.5 inch |
| Écran Typ | LCM, a-Si TFT-LCD |
| Pixel Zuel | 1920(RGB)×1080 (FHD) 102PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 476.064 × 267.786 (H×V) |
| Kontur (mm) | 497.6 × 292.2 × 11 (H×V×D) |
| Bezel Beräich (mm) | 479.8 × 271.3 (H×V) |
| Behandlung | Antiglare, Hard coating (3H) |
| luminance | - |
| Kontrast Verhältnis | 1000 : 1 (Typ.) (TM) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10) |
| Äntwert | 12/10 (Typ.)(Tr/Td) ms |
| gutt Vue op | Symmetry |
| Aarbecht Modus | AHVA, Normally Black, Transmissive |
| Faarfdéift | 16.7M |
| mass | - |
| benotzt fir | Industrial Gaming |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |
| Signal Typ | LVDS (2 ch, 8-bit) , Connector 30 pins |
| Spannungsversuergung | 5.0V (Typ.) |
| max. Bewäertungen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| G215HVN01.0 S03 | AUO | 21.5 | 1920×1080 |
| G215HVN01.0 S11 | AUO | 21.5 | 1920×1080 |
| G215HVN01.1 S03 | AUO | 21.5 | 1920×1080 |
| LM215DB-T02 | PANDA | 21.5 | 1920×1080 |
| LM215DT1A | PANDA | 21.5 | 1920×1080 |
| M215HJJ-L30 Rev.C1 | Innolux | 21.5 | 1920×1080 |
| M215HW01 V6 | AUO | 21.5 | 1920×1080 |
| M215HW02 V0 | AUO | 21.5 | 1920×1080 |
| MV215FHM-N30 | BOE | 21.5 | 1920×1080 |
| RX215-C10 | ROGIN | 21.5 | 1920×1080 |
