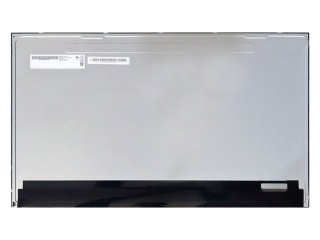

| Part Number | G215HAN01.201 |
| Mark | AUO |
| Gréisst | 21.5 |
| Applikatioun | Industrial Medical I |
| Opléisung | 1920×1080 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | 12S4P |
| Interface | LVDS |
| Panel Mark | AUO |
| Panel Modell | G215HAN01.201 |
| Panel Gréisst | 21.5" |
| Panel Typ | a-Si TFT-LCD, LCM |
| Resolutioun | 1920(RGB)×1080, FHD, 102PPI |
| Pixel Format | RGB Vertical Stripe |
| Affichage Beräich | 476.064(W)×267.786(H) mm |
| bezel Ouverture | 479.8(W)×271.3(H) mm |
| Kontur Gréisst | 497.6(W)×292.2(H) ×11(D) mm |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 300 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) (TM) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10) |
| Display Modus | AHVA, Normally Black, Transmissive |
| beschte Vue op | Symmetry |
| Äntwert Zäit | 12/10 (Typ.)(Tr/Td) |
| weisen Faarwen | 16.7M 99% sRGB |
| Lampe Typ | 12S4P WLED , 50K hours , Without Driver |
| Frequenz | 60Hz |
| Touchscreens | Without |
| Panel Gewiicht | 1.74Kgs (Typ.) |
| Applikatioun | Industrial Medical Imaging |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Input Volt | 5.0V (Typ.) |
| Ëmwelt | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C |
